Plan.a™ Low Profile Aluminium Entrance Matting with Alba ECONYL®

Defend against dirt and moisture with versatile aluminium entrance matting

Plan.a is a high-end entrance matting product and is also COBA Flooring’s best-selling solution. Offering excellent product performance along with options for design customisation, Plan.a can be tailored to suit an array of building styles and entrance configurations. Comprised of an aluminium rail system linked with flexible joints, it offers the utmost durability for busy buildings. Genuinely handmade to order in the UK, providing reassurance of precision and quality. The low-profile version of Plan.a is suited to entrances that feature a shallower matwell or for projects with lower footfall or looking to reduce material costs. ECONYL® regenerated nylon performs exactly the same as brand new nylon but is more sustainable and helps clean up our oceans.

Features and Benefits

  • Robust, high-quality aluminium system for heavy-duty use designed to cope with high footfall.
  • Flexible, yet durable PVC linking joints for ease of handling and easy fitting.
  • Custom-made to order to your specification.
  • Choose from one, or a combination of different surface options.
  • Also now available with vibrant coloured needlepunch or needlefelt polypropylene carpet inserts as used our Logomat Precision products.
  • Logomats can be incorporated into any Plan.a design.
  • Manufactured in the UK.
  • Fire tested to BS EN 13501-1 and slip tested to BS 7976-2.

Technical Specification

Uniclass: Pr_35_57_11_26 Entrance mats

CAWS: N10 / 300 Entrance Matting

Surface Finish: Carpet

Product Height: 10 mm

Durability: Heavy to very heavy traffic entrances

Environmental Resistance: Suitable for dry environments

UV Resistance: Yes

Typical Applications: Entrance areas

Installation Method: Installed into recessed well or laid to surface

Other Product Performance Information: Uniform floor load = 14.36 KN/ m². Wheel load 159 kg per wheel

Fire Tested to: Alba inserts: BS EN 13501-1 Class Cfl – s1.

COO (Country of Origin): UK

Notes: Alba is a tufted carpet product and therefore its appearance can vary depending on the direction of the pile and the light in the surrounding environment. To achieve a uniform appearance consider hoovering the product in a single direction. Slip resistance specifications are based on the correct direction of travel i.e. perpendicular to the channels and inserts.

Slip Tested to: BS 7976-2 – low slip potential

Styles and Colours

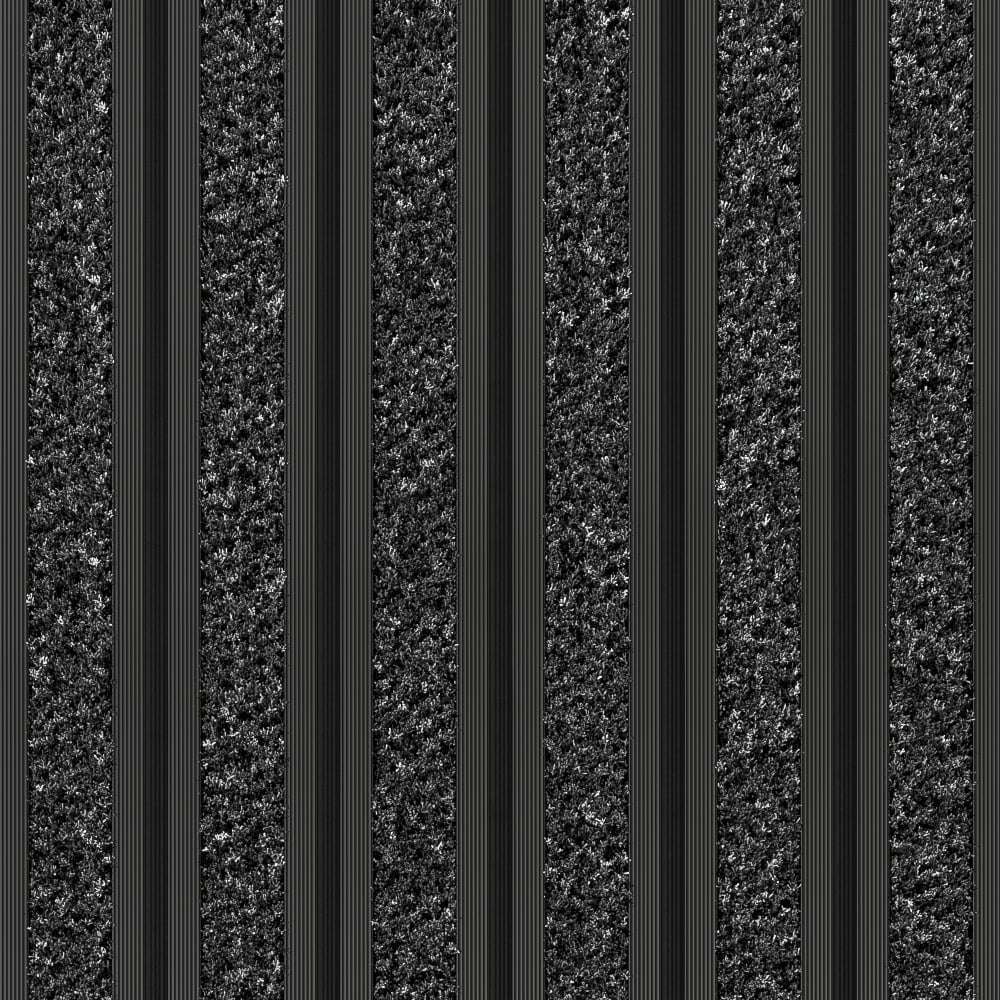

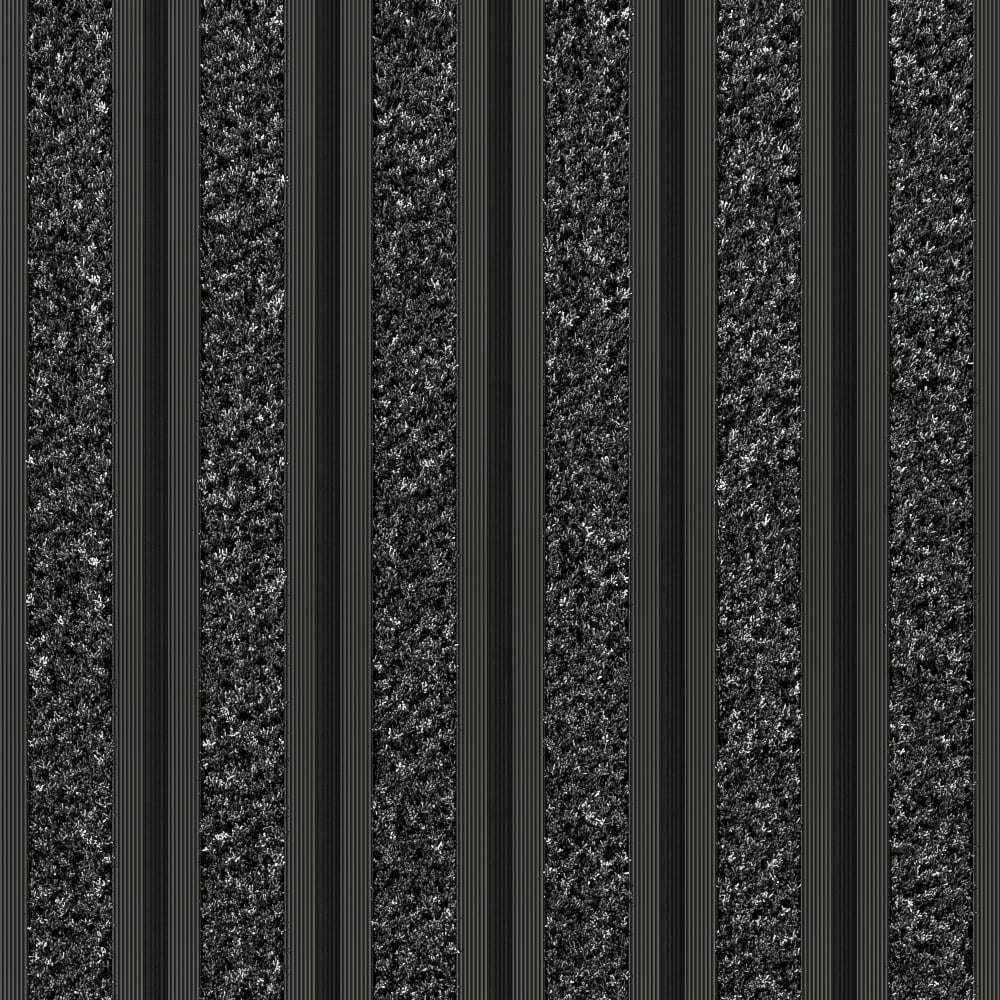

Low Profile Black Anodized Closed Surface Anthracite Alba

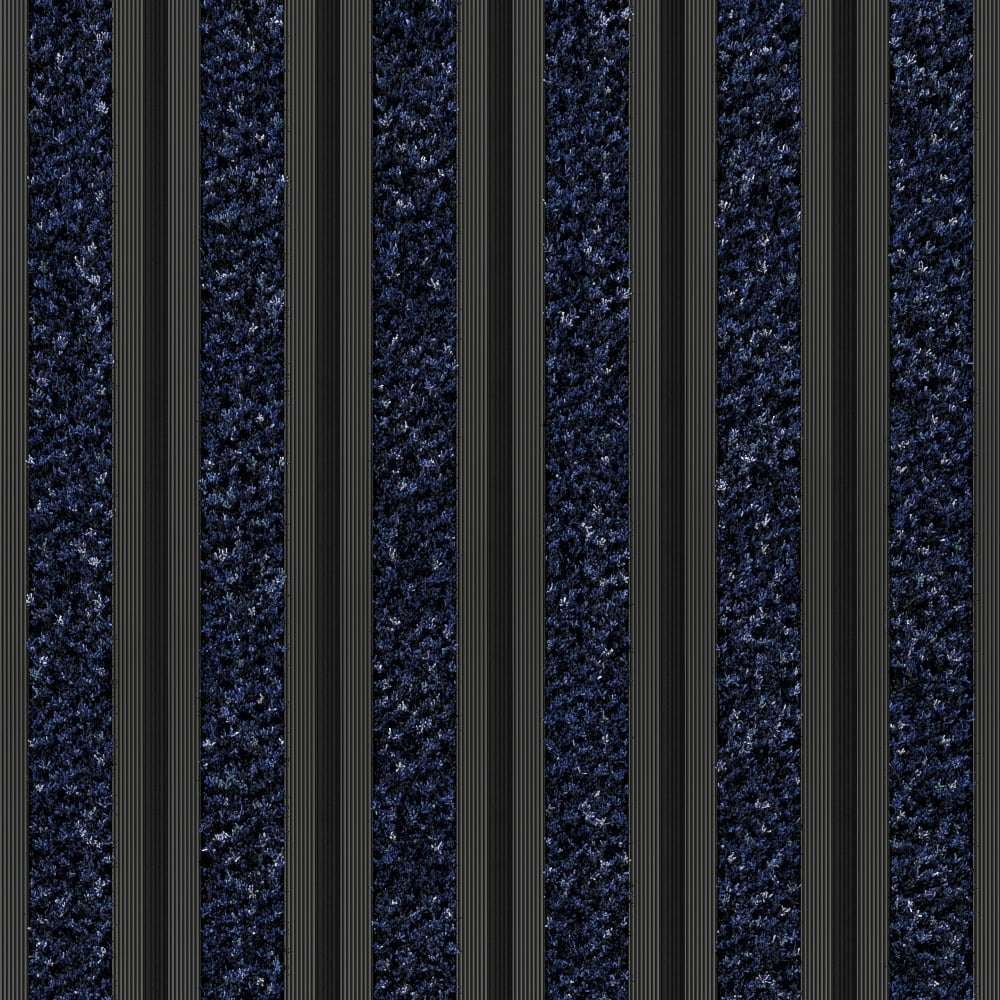

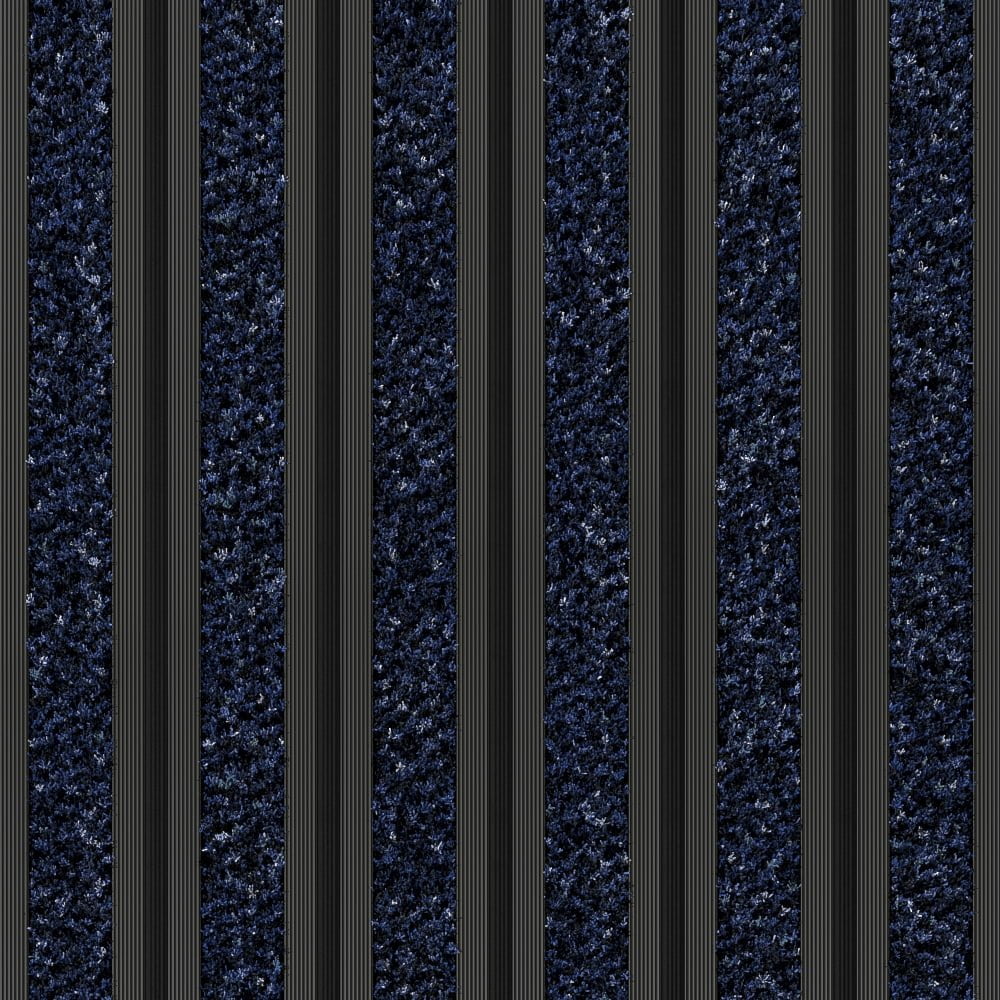

Low Profile Black Anodized Closed Surface Blue Alba

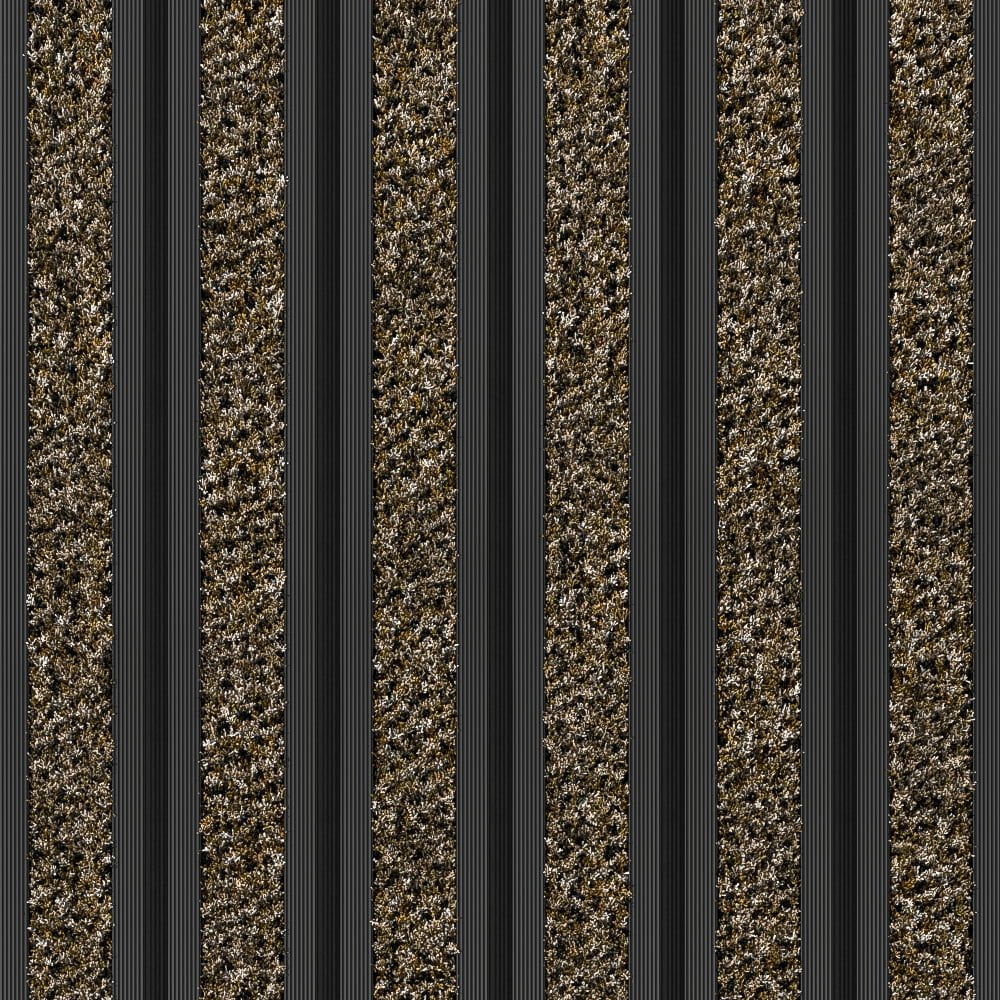

Low Profile Black Anodized Closed Surface Brown Alba

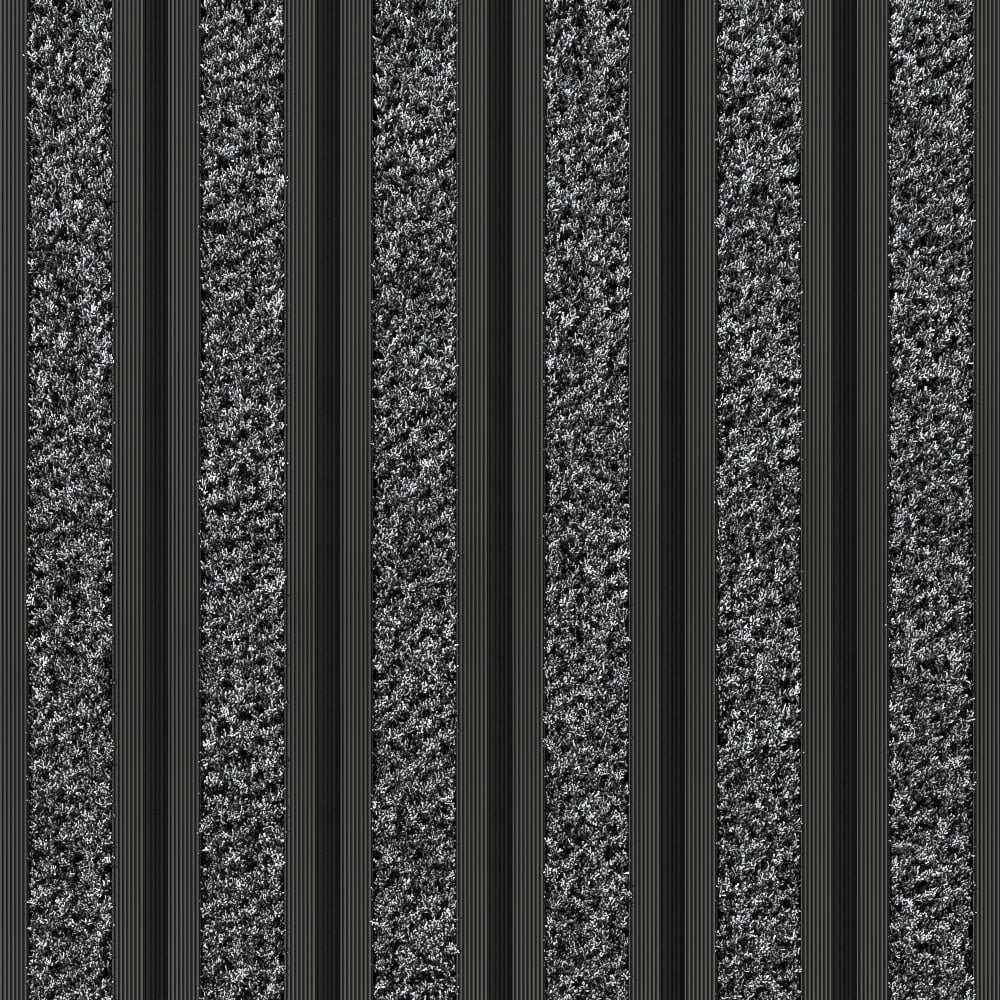

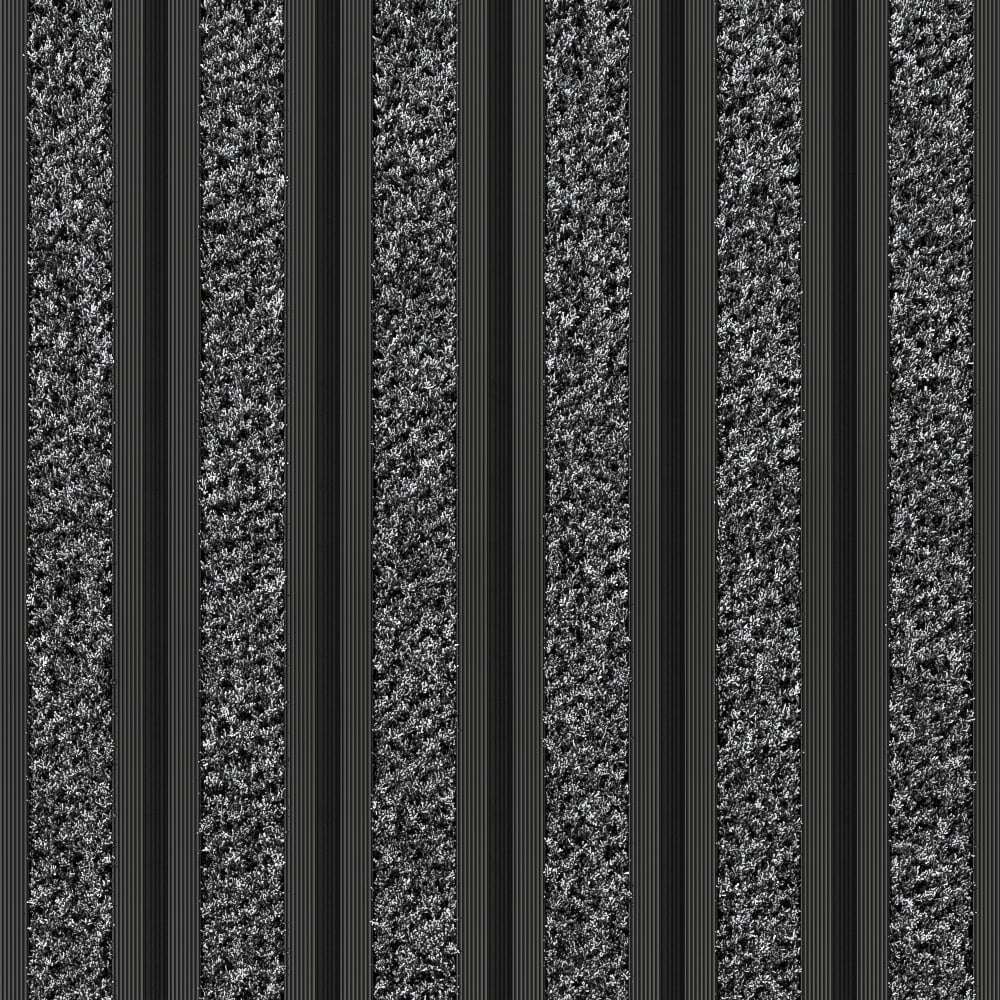

Low Profile Black Anodized Closed Surface Grey Alba

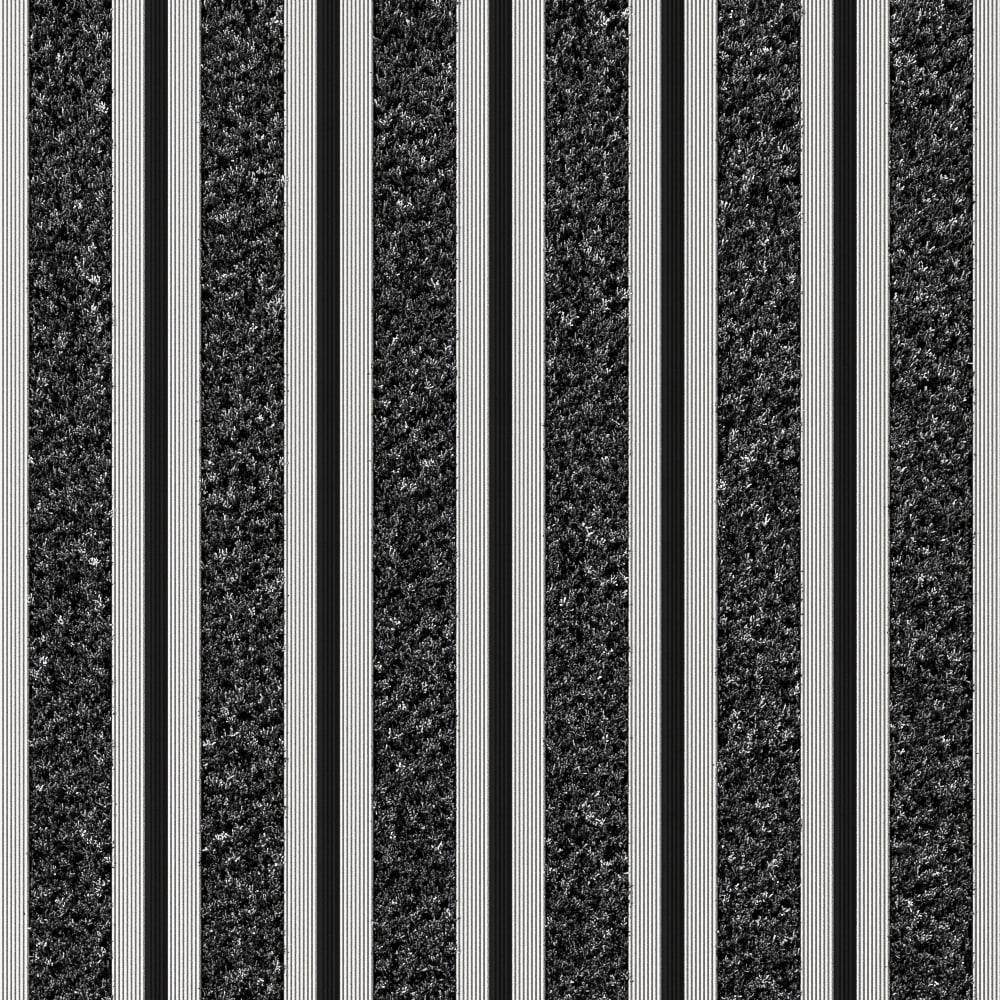

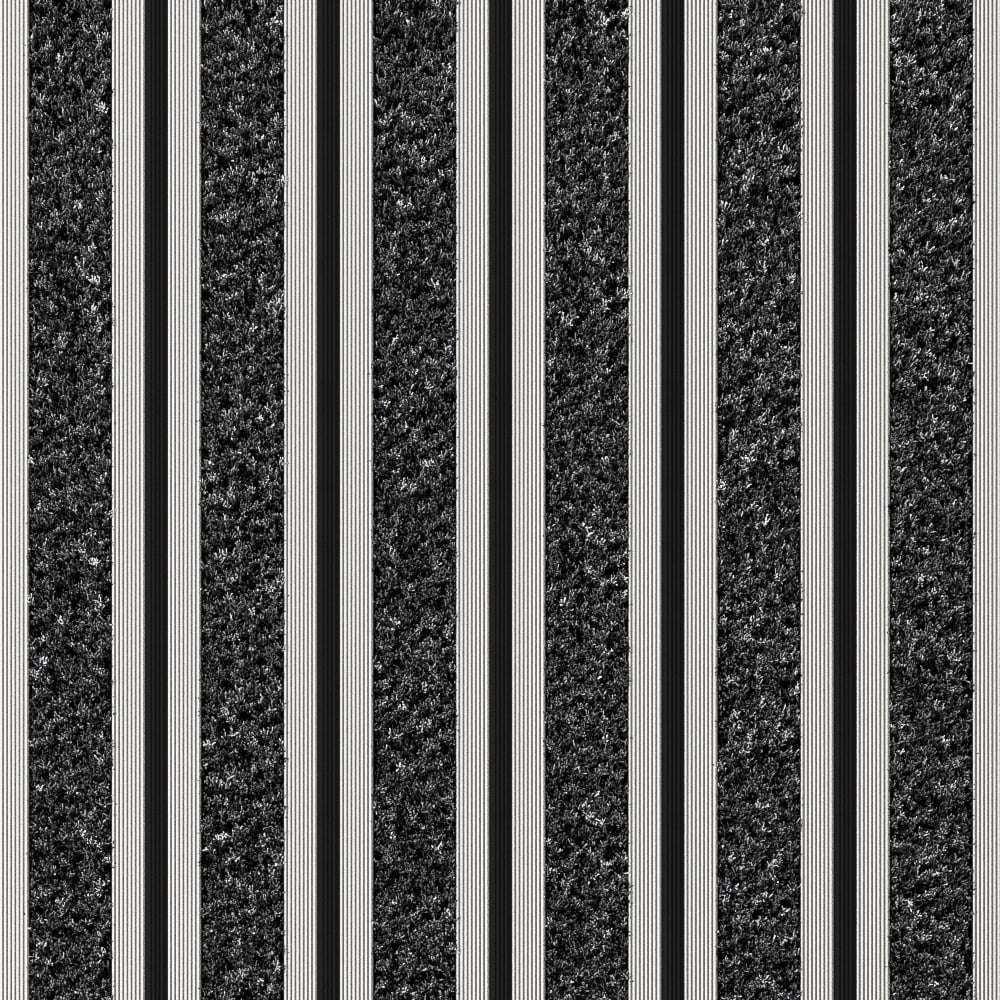

Low Profile Aluminium Closed Surface Anthracite Alba

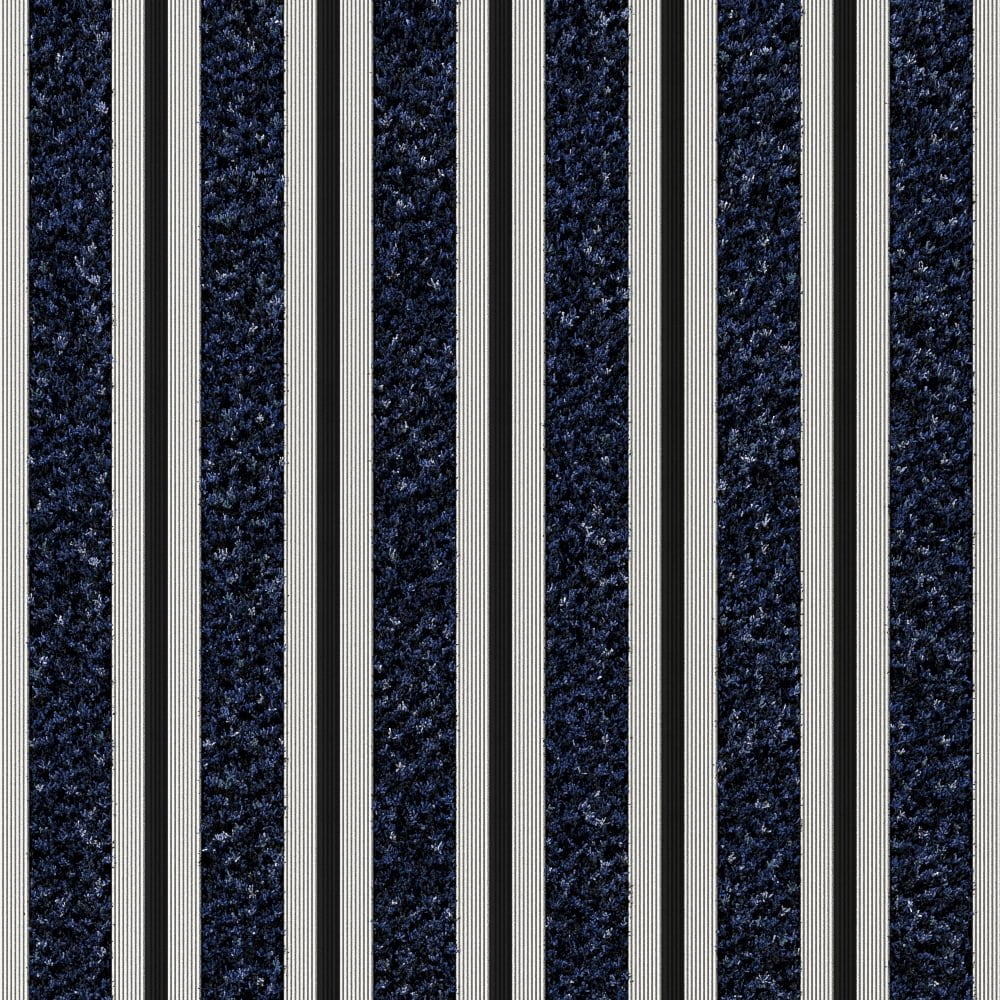

Low Profile Aluminium Closed Surface Blue Alba

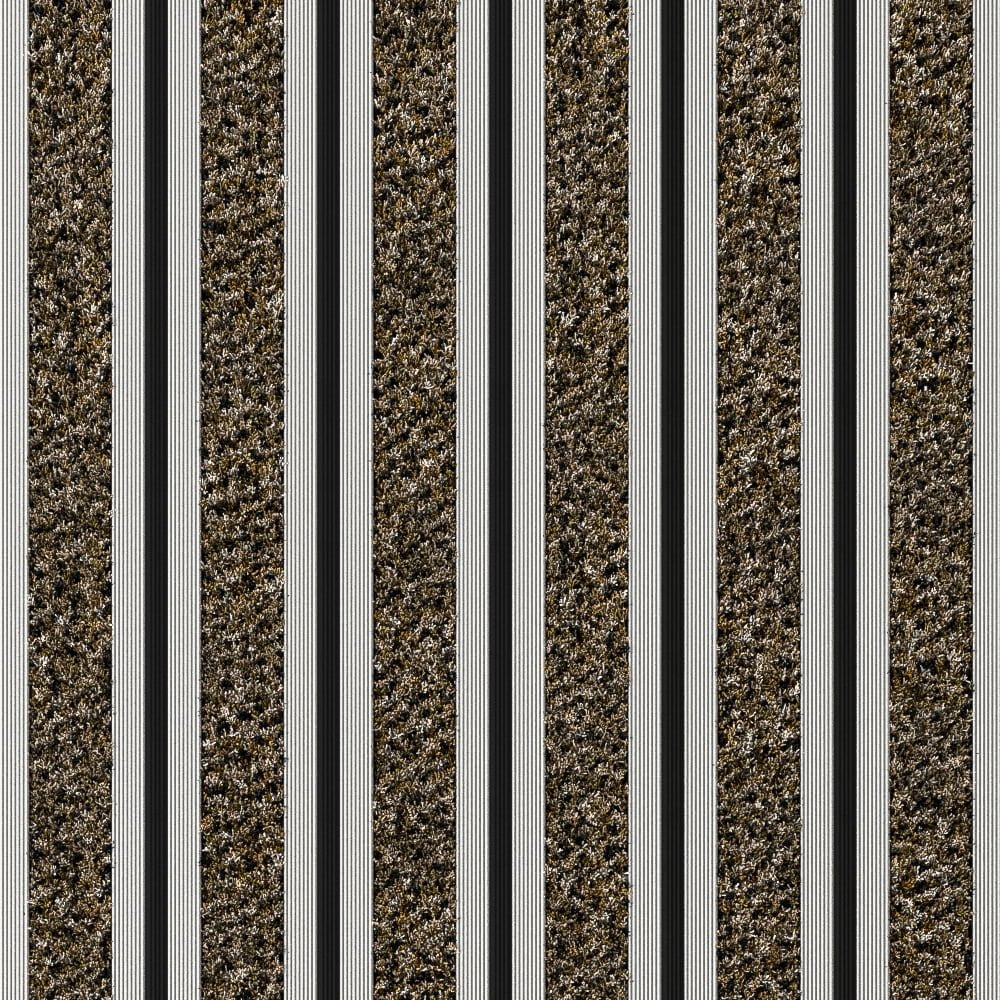

Low Profile Aluminium Closed Surface Brown Alba

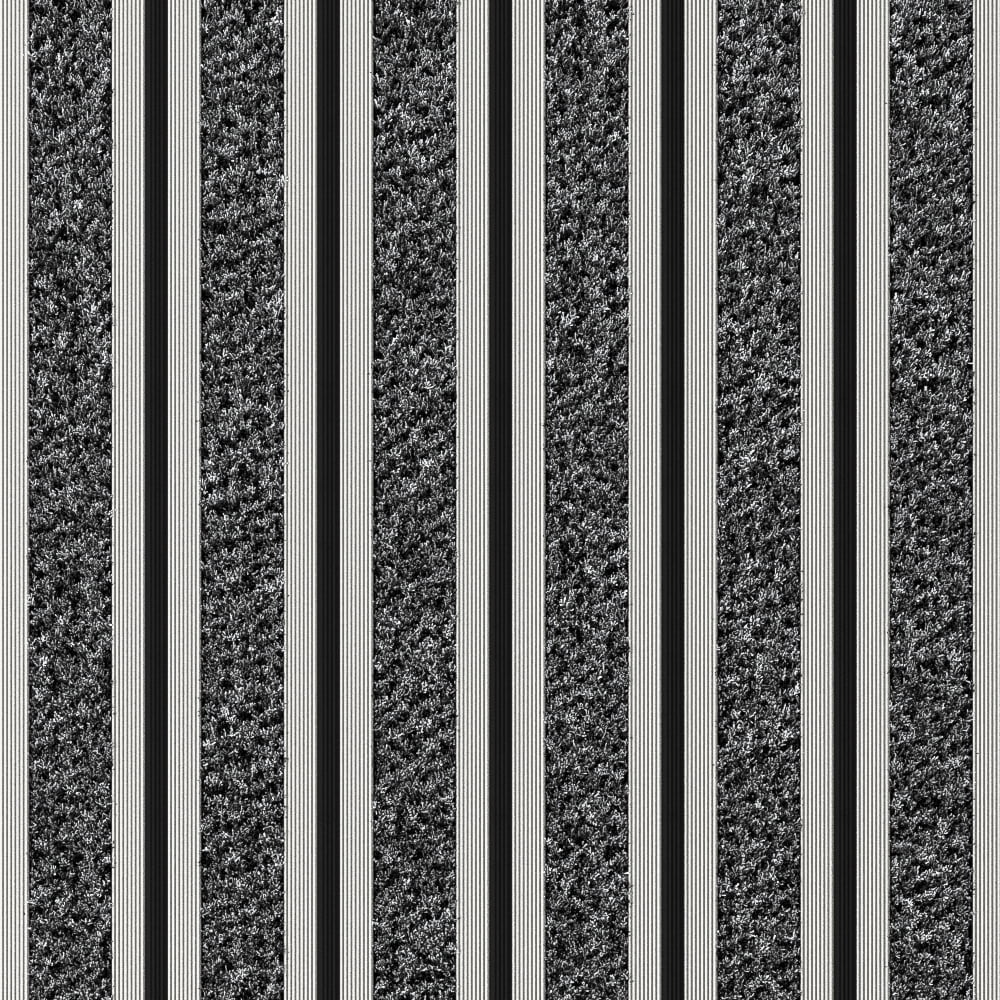

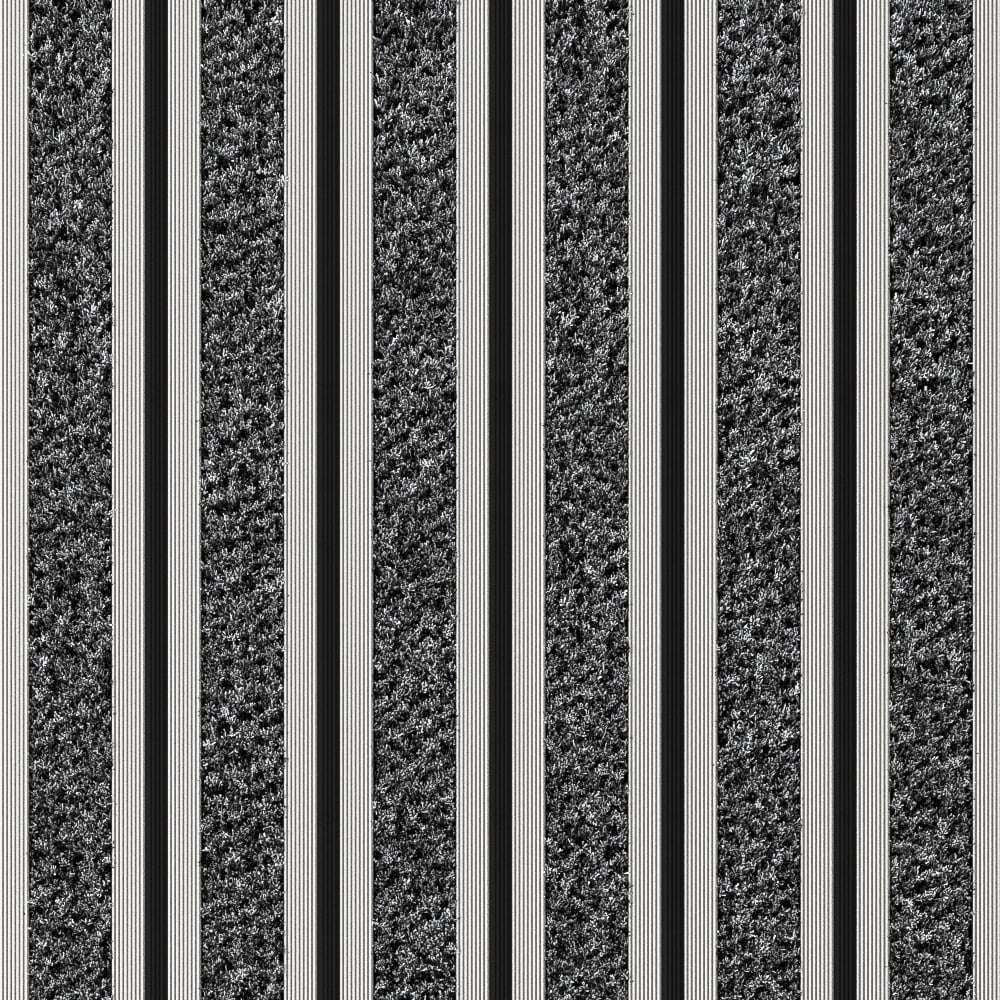

Low Profile Aluminium Closed Surface Grey Alba

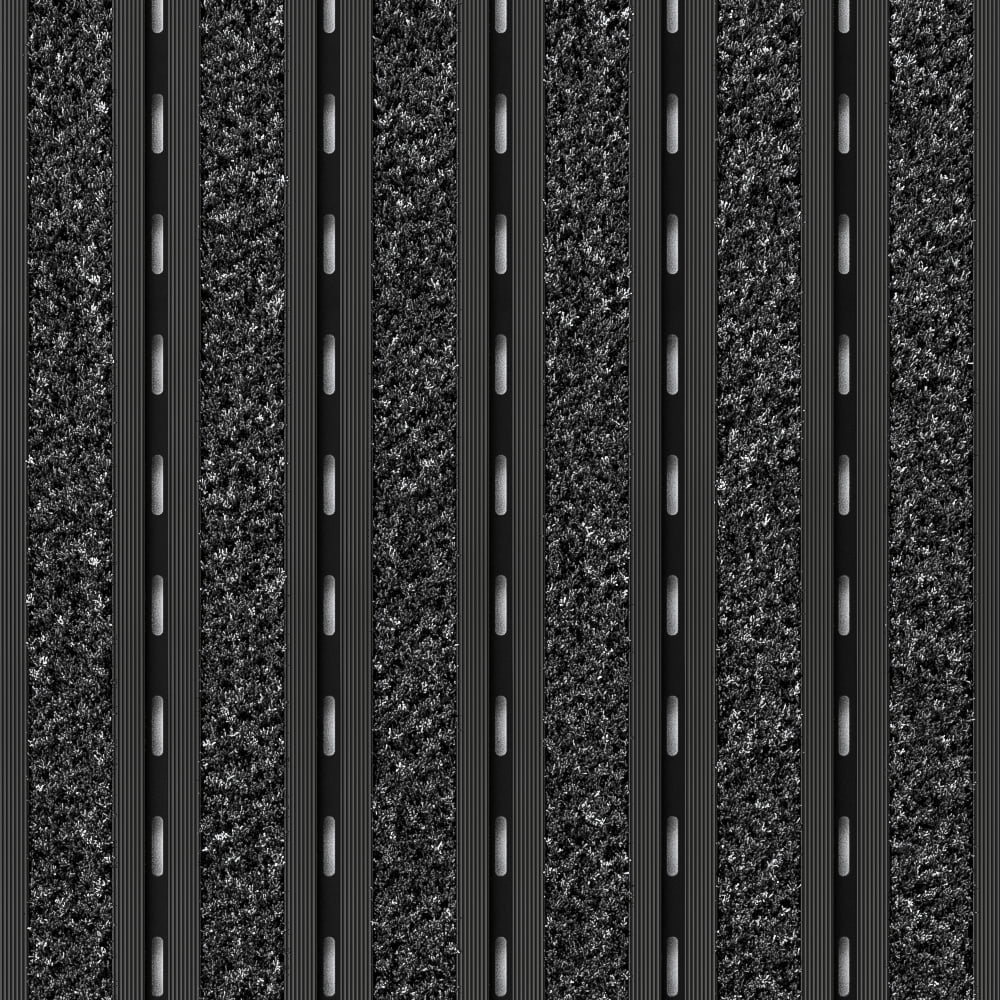

Low Profile Black Anodized Open Surface Anthracite Alba

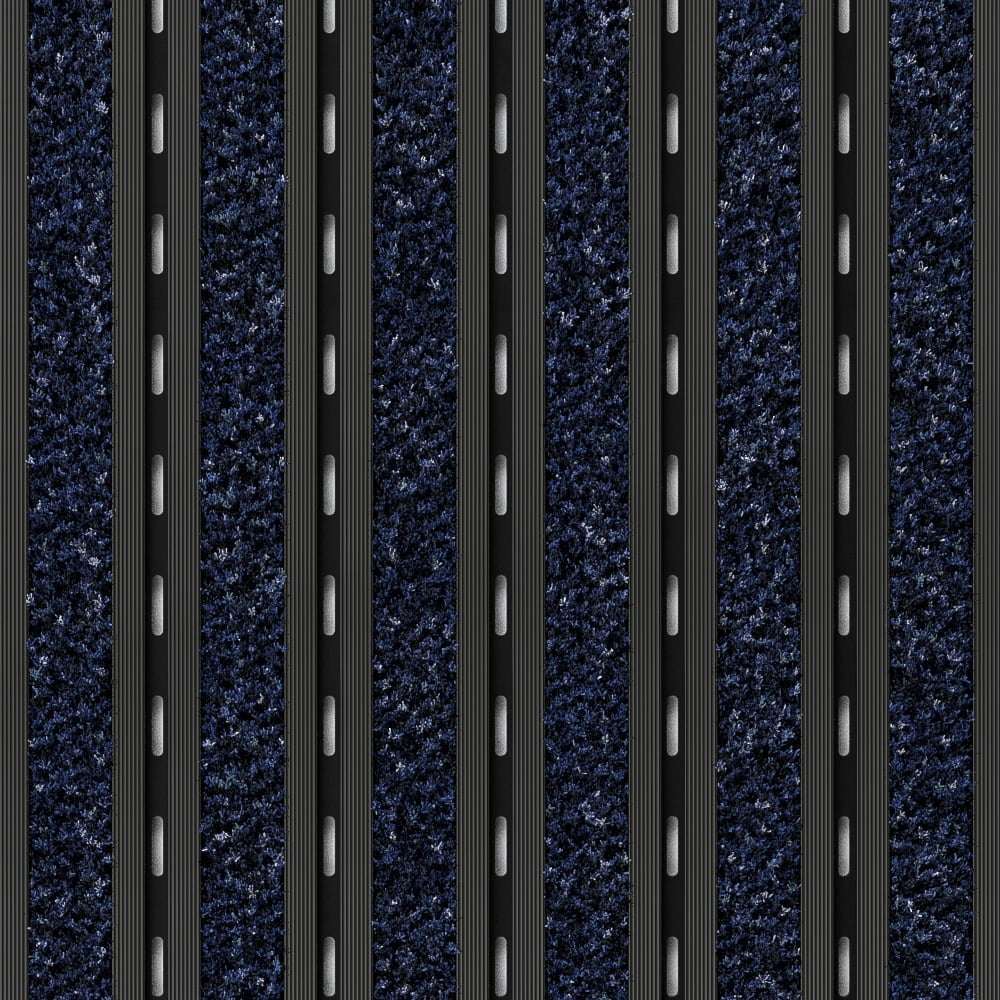

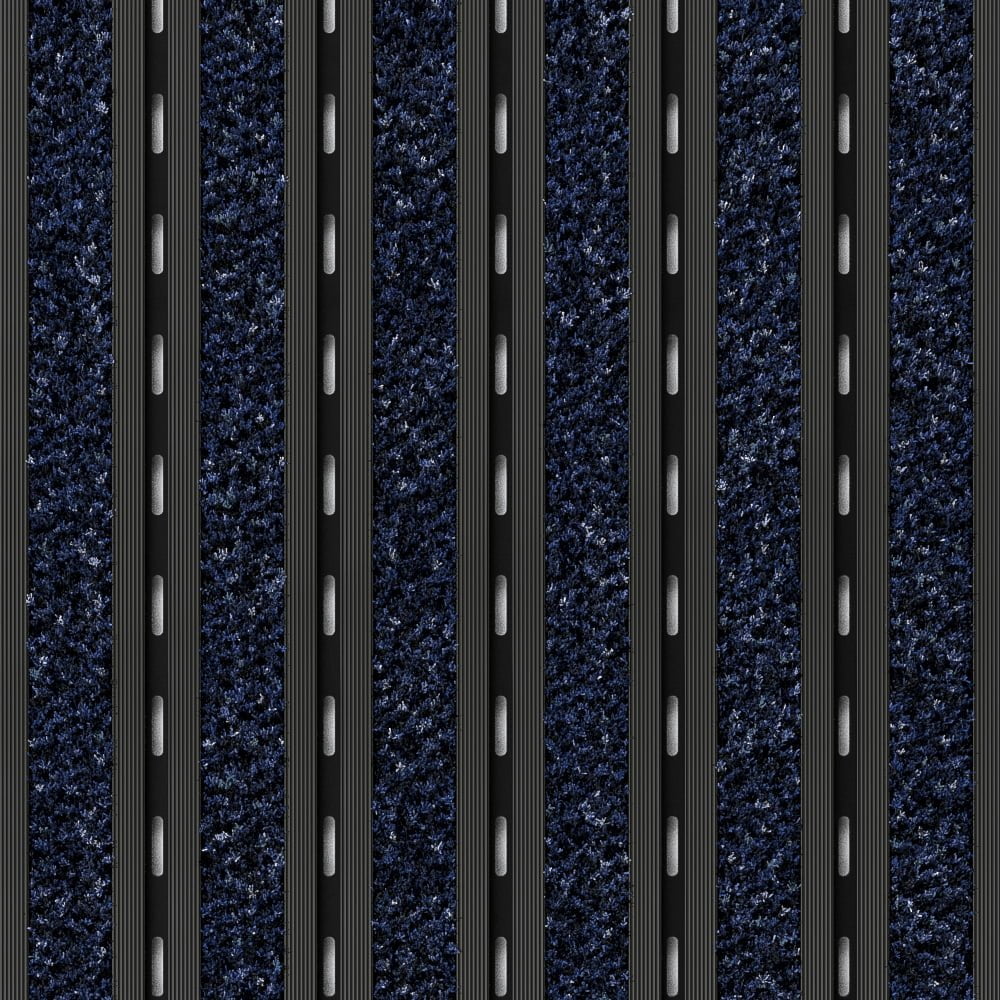

Low Profile Black Anodized Open Surface Blue Alba

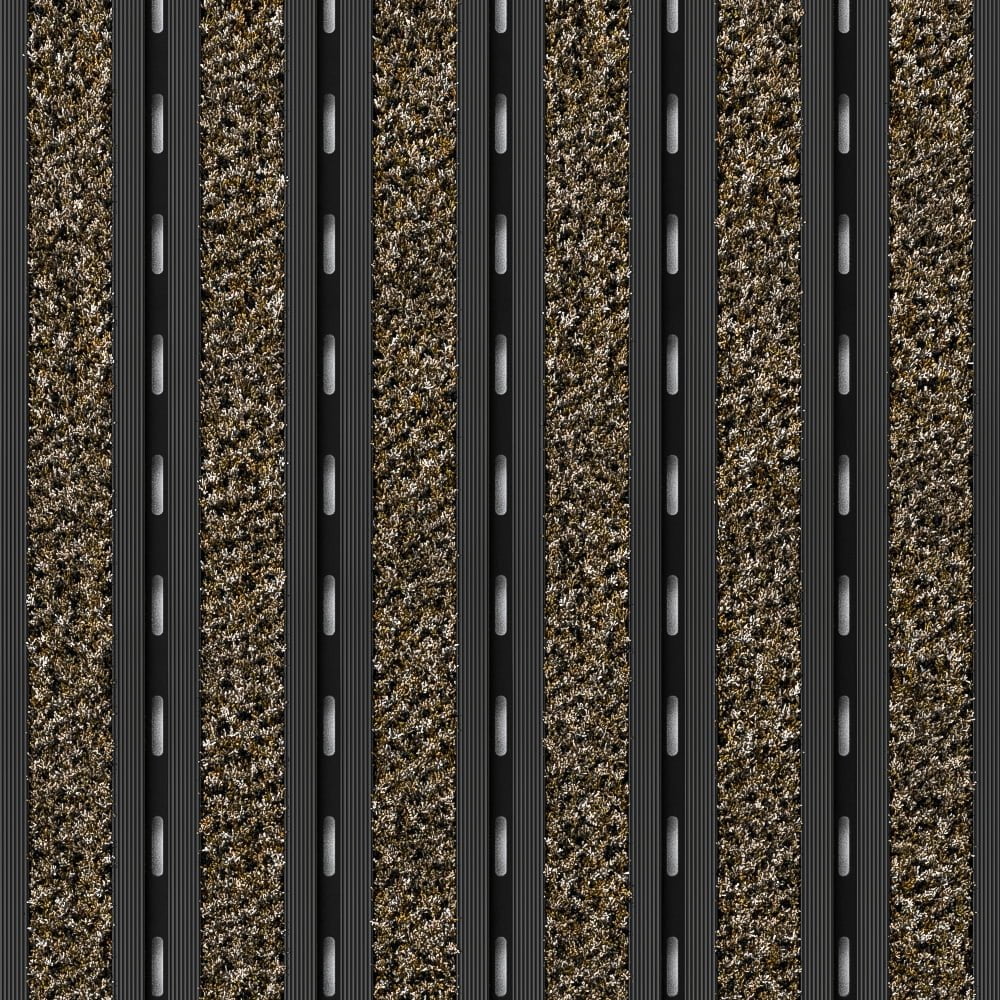

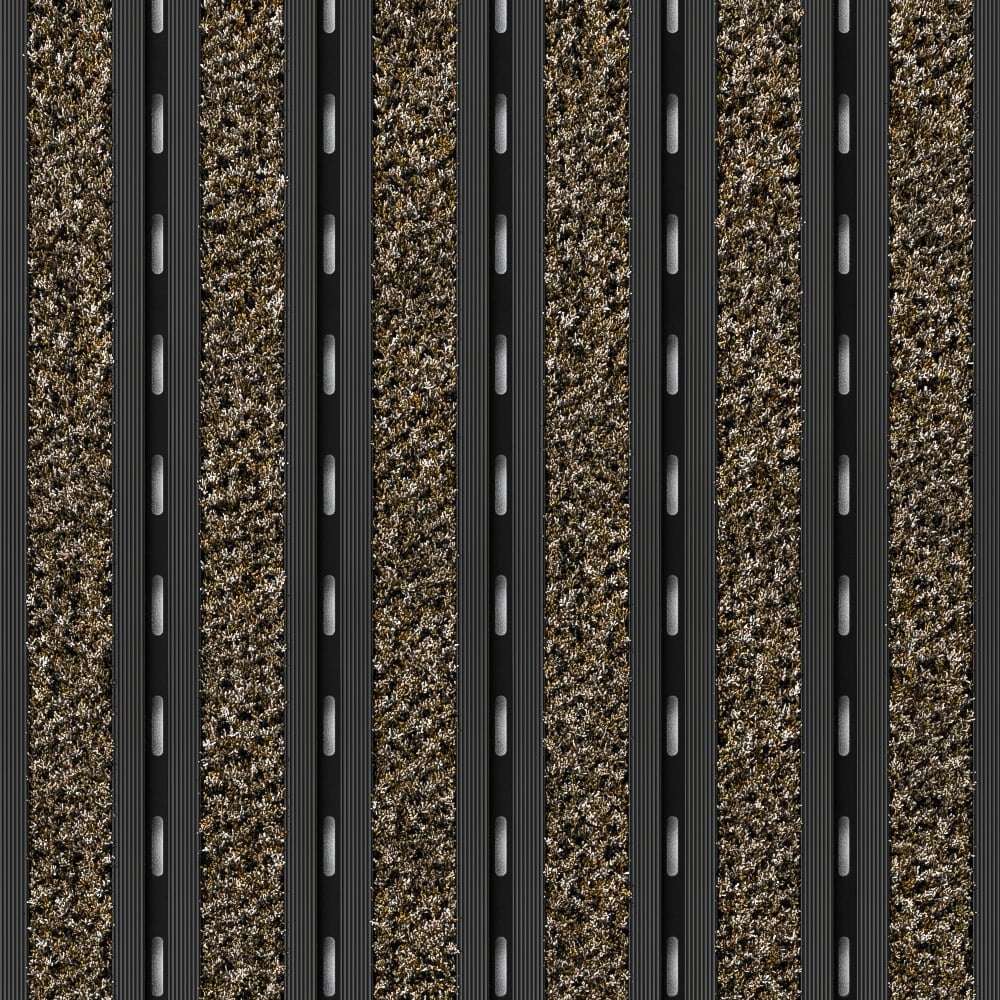

Low Profile Black Anodized Open Surface Brown Alba

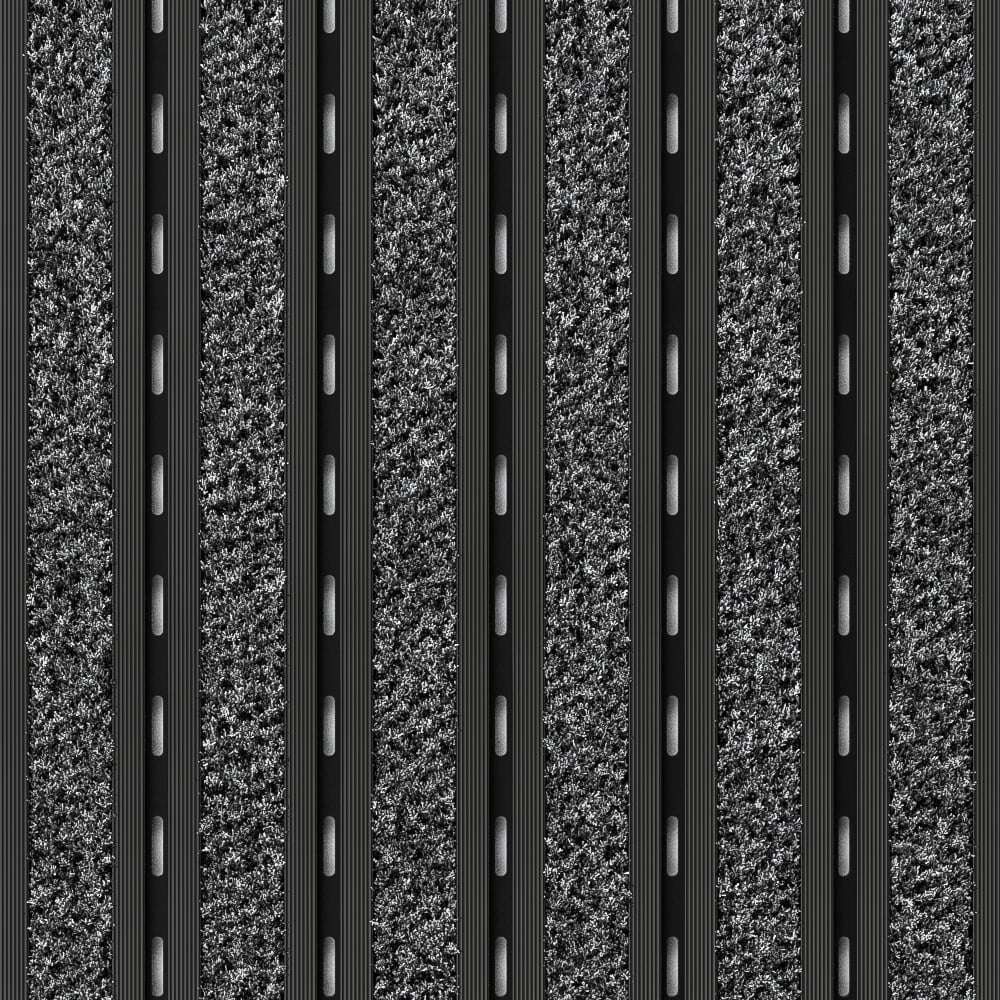

Low Profile Black Anodized Open Surface Grey Alba

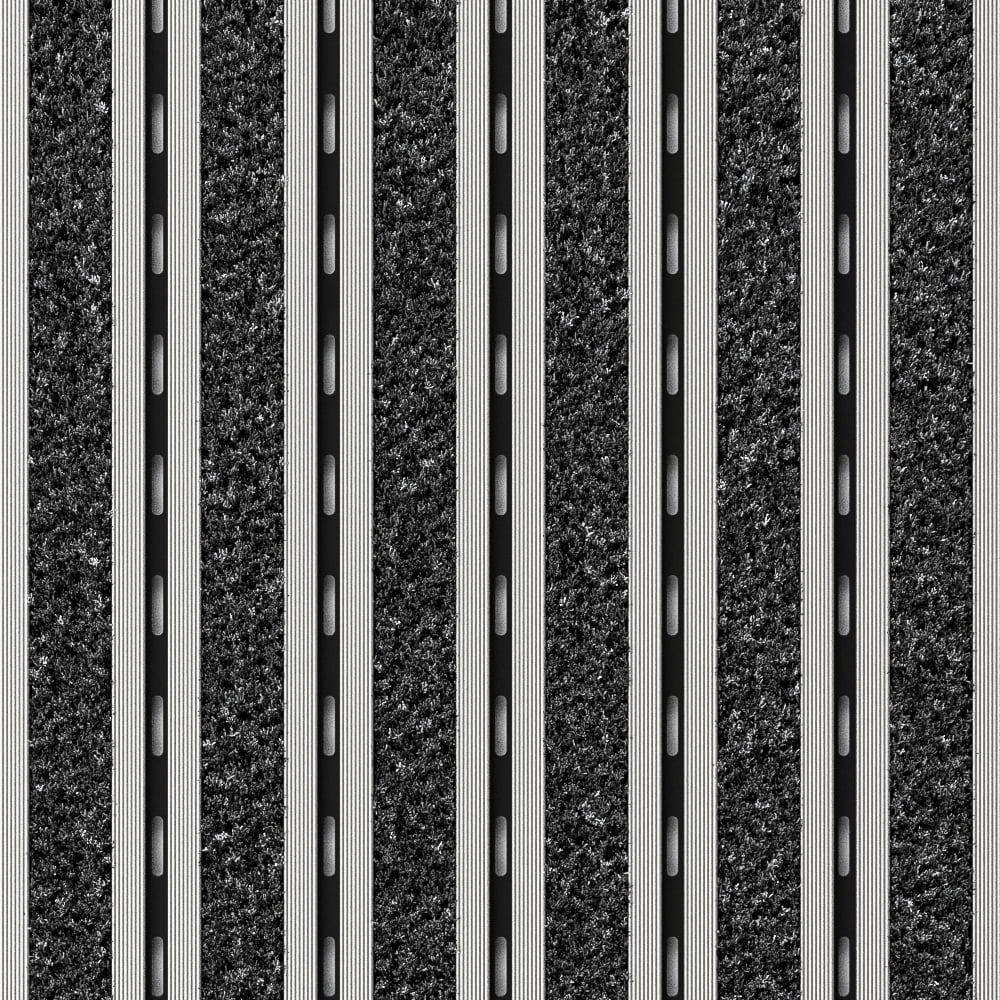

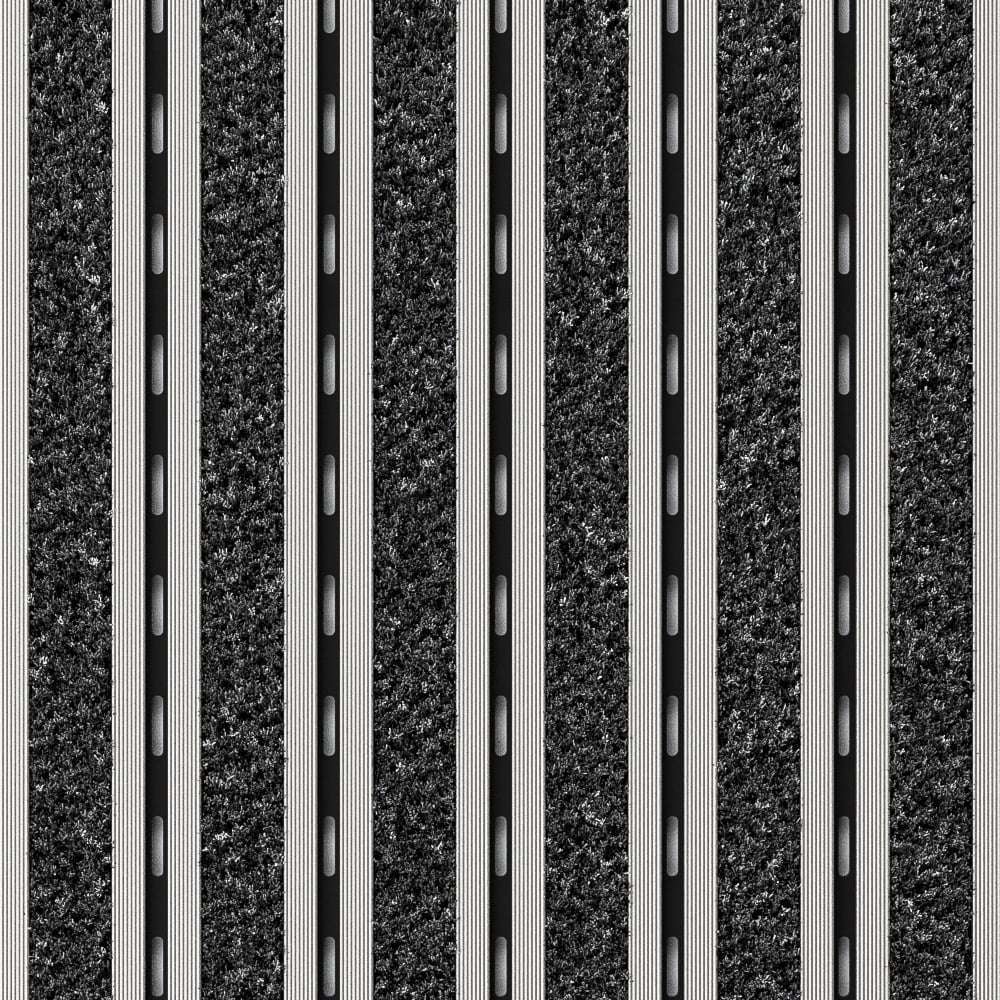

Low Profile Aluminium Open Surface Anthracite Alba

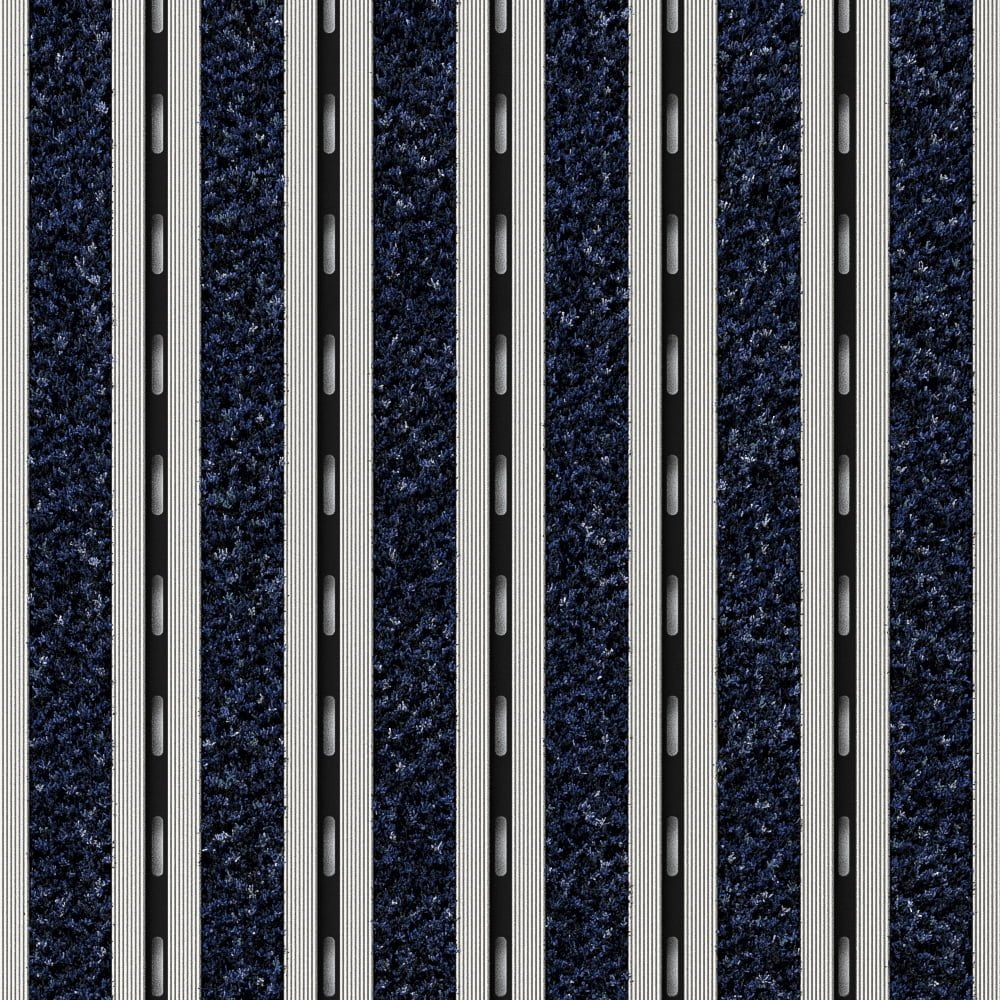

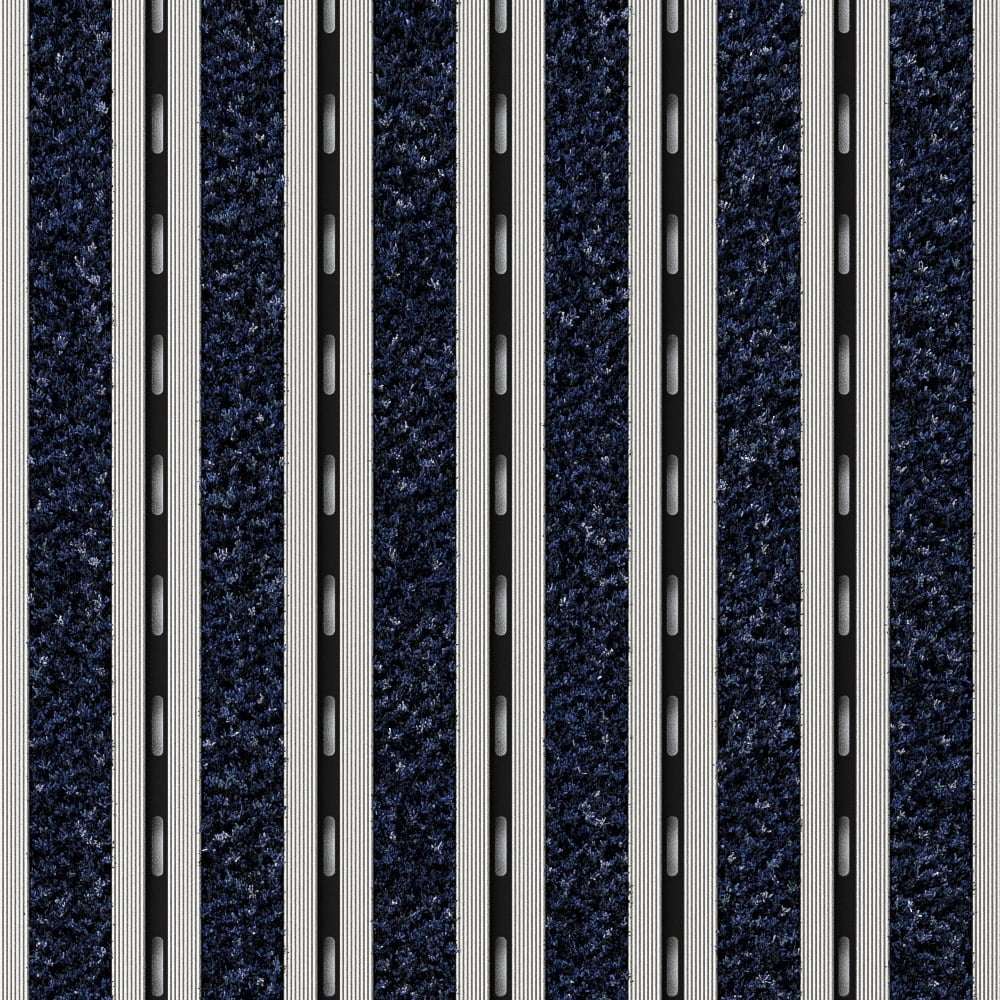

Low Profile Aluminium Open Surface Blue Alba

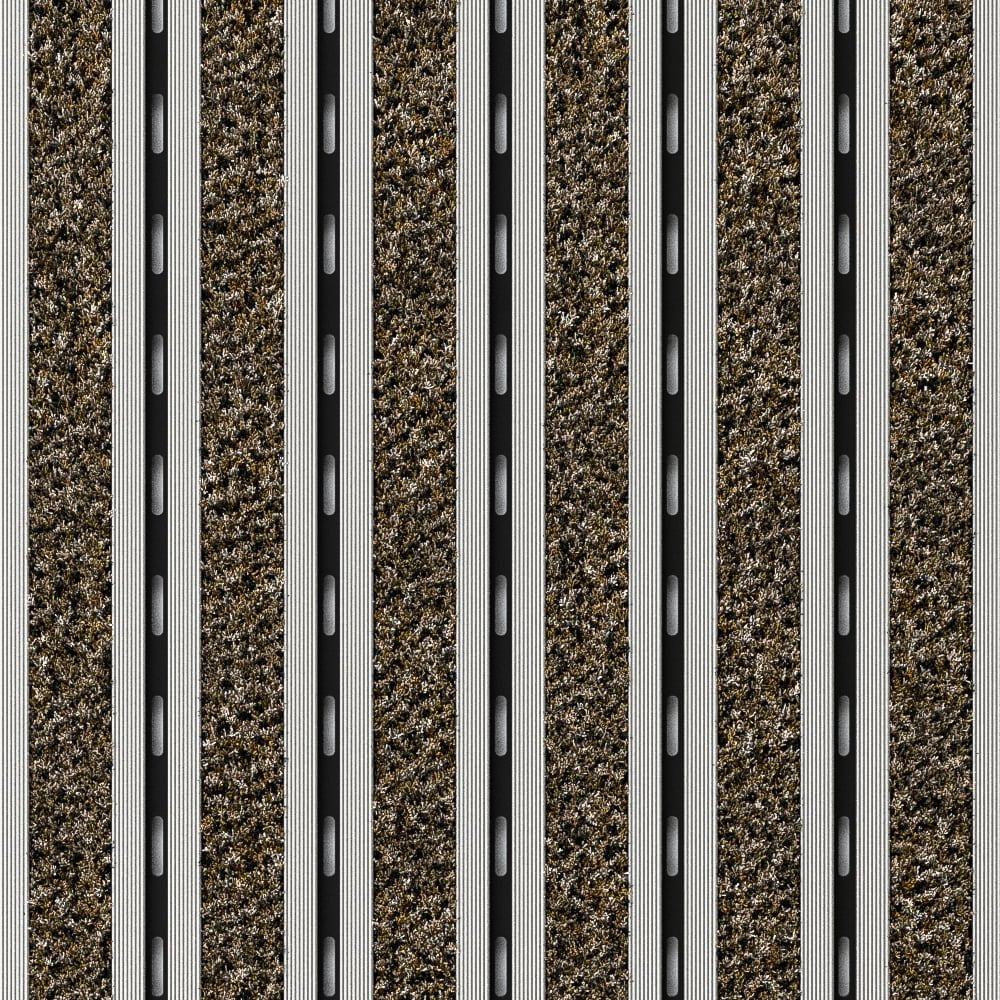

Low Profile Aluminium Open Surface Brown Alba

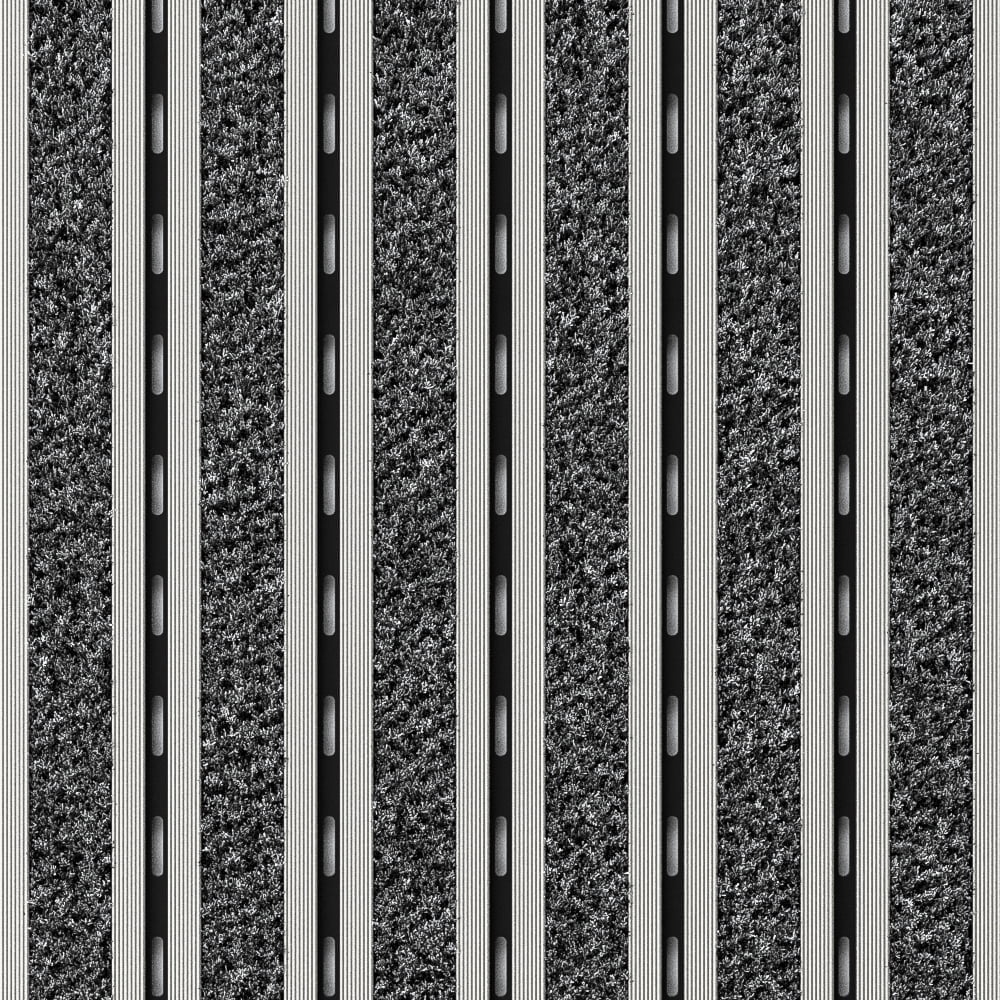

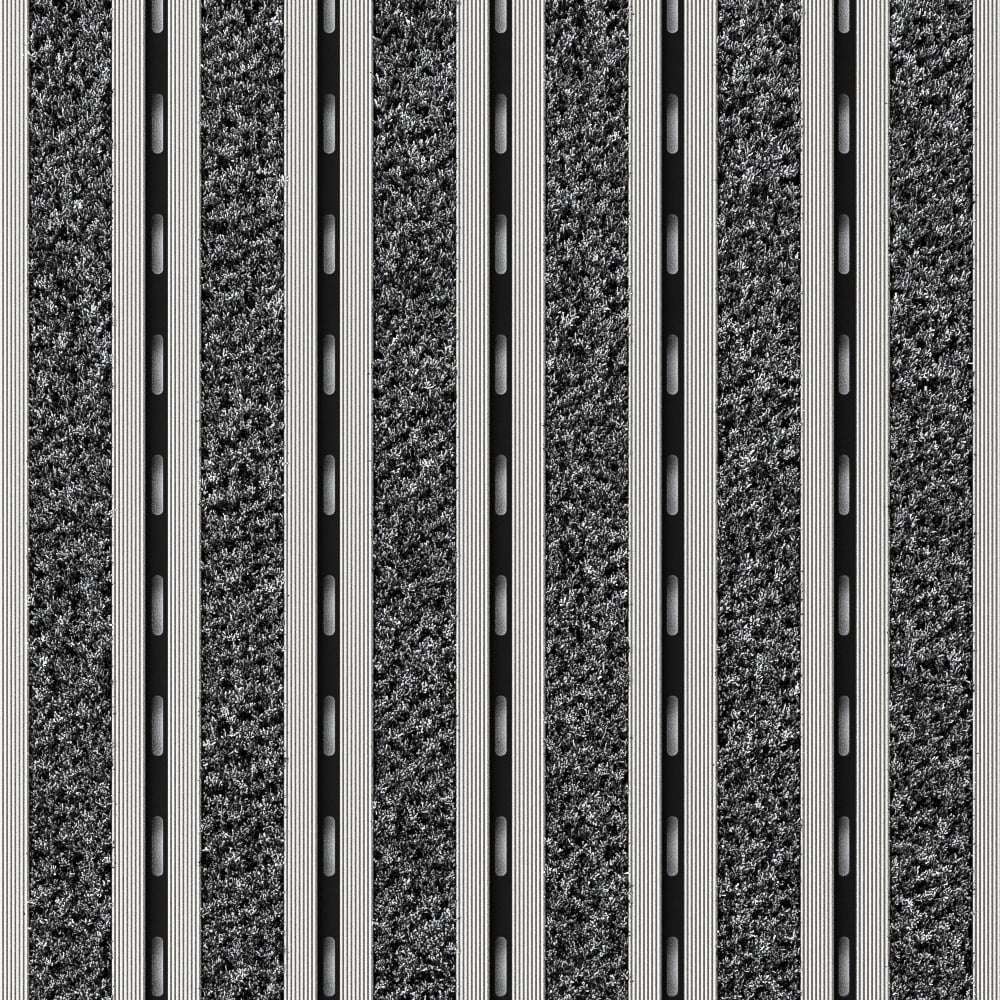

Low Profile Aluminium Open Surface Grey Alba

Downloads and Resources

Installation Guidelines

Technical Drawings

Plan.a Closed Surface Low Profile in a Recessed Matwell

Plan.a Closed Surface Low Profile in a Recessed Matwell

Plan.a Closed Surface Low Profile with Ramped Edge

Plan.a Closed Surface Low Profile with Ramped Edge

Plan.a Open Surface Low Profile in a Recessed Matwell

Plan.a Open Surface Low Profile in a Recessed Matwell

Plan.a Open Surface Low Profile with Ramped Edge

Plan.a Open Surface Low Profile with Ramped Edge
