Plan.a™ Aluminium Entrance Matting with Scrapers
Defend against dirt and moisture with versatile aluminium entrance matting
PLAN® A is a high-end entrance matting product and is also COBA Flooring’s best-selling solution. Offering excellent product performance along with options for design customisation, PLAN® A can be tailored to suit an array of building styles and entrance configurations. Comprised of an aluminium rail system linked with flexible joints, it offers the utmost durability for busy buildings. Genuinely handmade to order in the UK, providing reassurance of precision and quality. Ribbed scrapers not only provide effective cleaning of footwear but look smart and add clean lines to the entrance area. Scrapers are often partnered with a carpet finish in the Combination specification but equally can be specified as the primary insert for an entrance mat.
Parts
| Part NumberPLANA1004 | Size | ColourBlack | Weight |
Features and Benefits
- Robust, high-quality aluminium system for heavy-duty use designed to cope with high footfall.
- Flexible, yet durable PVC linking joints for ease of handling and easy fitting.
- Custom-made to order to your specification.
- Choose from one, or a combination of different surface options.
- Also now available with vibrant coloured needlepunch or needlefelt polypropylene carpet inserts as used our Logomat Precision products.
- Logomats can be incorporated into any Plan.a design.
- Manufactured in the UK.
- Fire tested to BS EN 13501-1 and slip tested to BS 7976-2.
Technical Specification
Material: Aluminium rails, PVC connection strips, PVC Scraper Inlays
Surface Finish: Scrapers
Product Height: 17 mm
Durability: Heavy to very heavy traffic entrances
Environmental Resistance: Suitable for dry environments
UV Resistance: Yes
Typical Applications: Entrance areas
Installation Method: Installed into recessed well
Other Product Performance Information: Uniform floor load = 14.36 KN/ m². Wheel load 159 kg per wheel
Fire Tested to: PVC scraper inserts: BS EN 13501-1 Class Cfl – s2.
Notes: Slip resistance specifications are based on the correct direction of travel i.e. perpendicular to the rails and inserts. Black Anodised finish availability is subject to quantity required.
Slip Tested to: BS 7676-2 Pendulum Slip Test- Alba inserts, Needlepunch inserts, PVC scraper inserts
Styles and Colours
].png?s=1500x&t=JPEG)

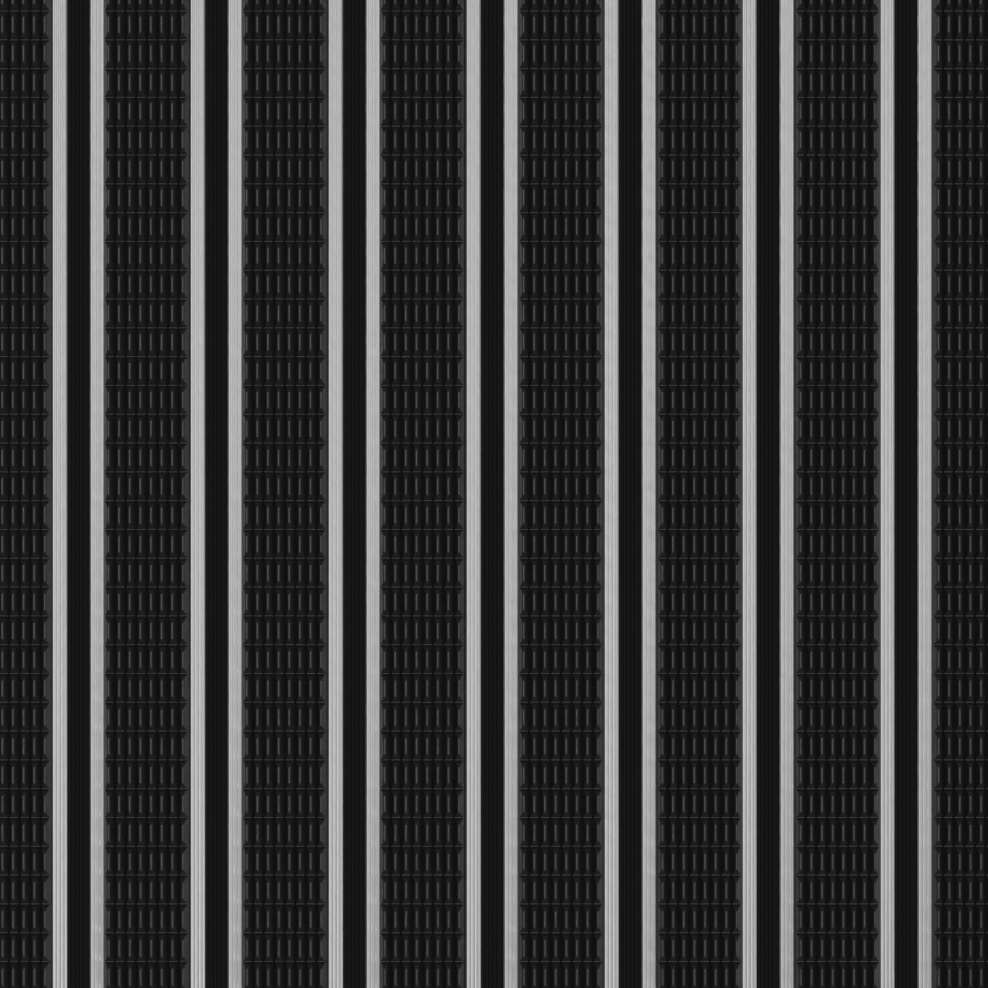

Multi Directional Scrapers (Closed Construction)
].png?s=1500x&t=JPEG)

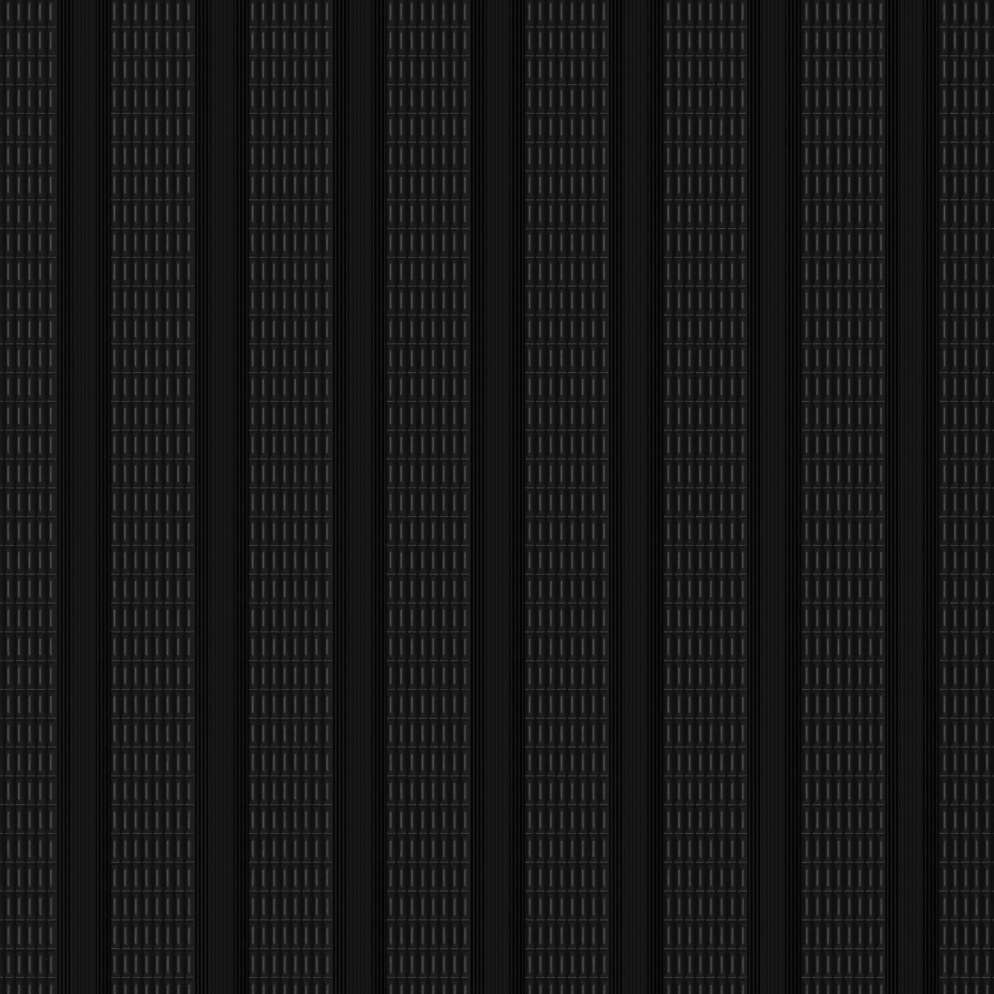

Multi Directional Scrapers with Black Anodised Rails (Closed Construction)
].jpg?s=1500x&t=JPEG)

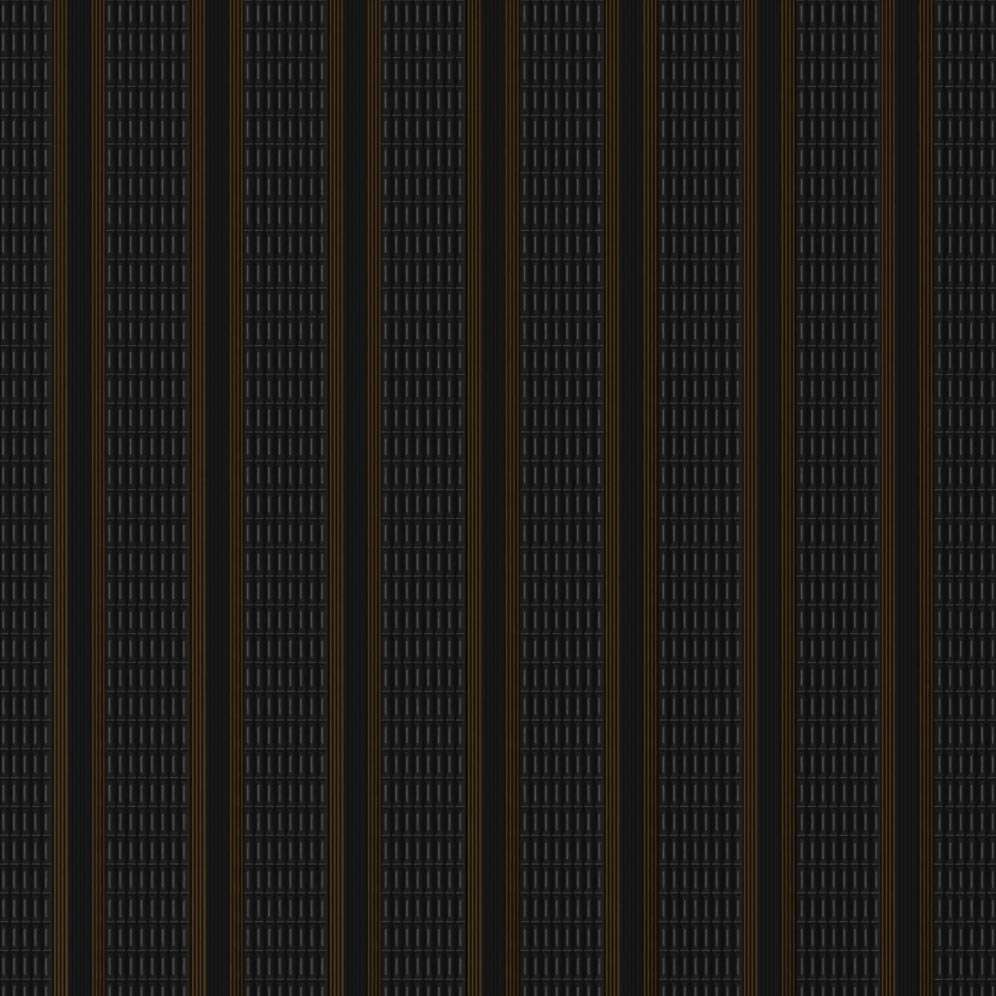

Multi Directional Scrapers with Bronze Rails (Closed Construction)
].png?s=1500x&t=JPEG)

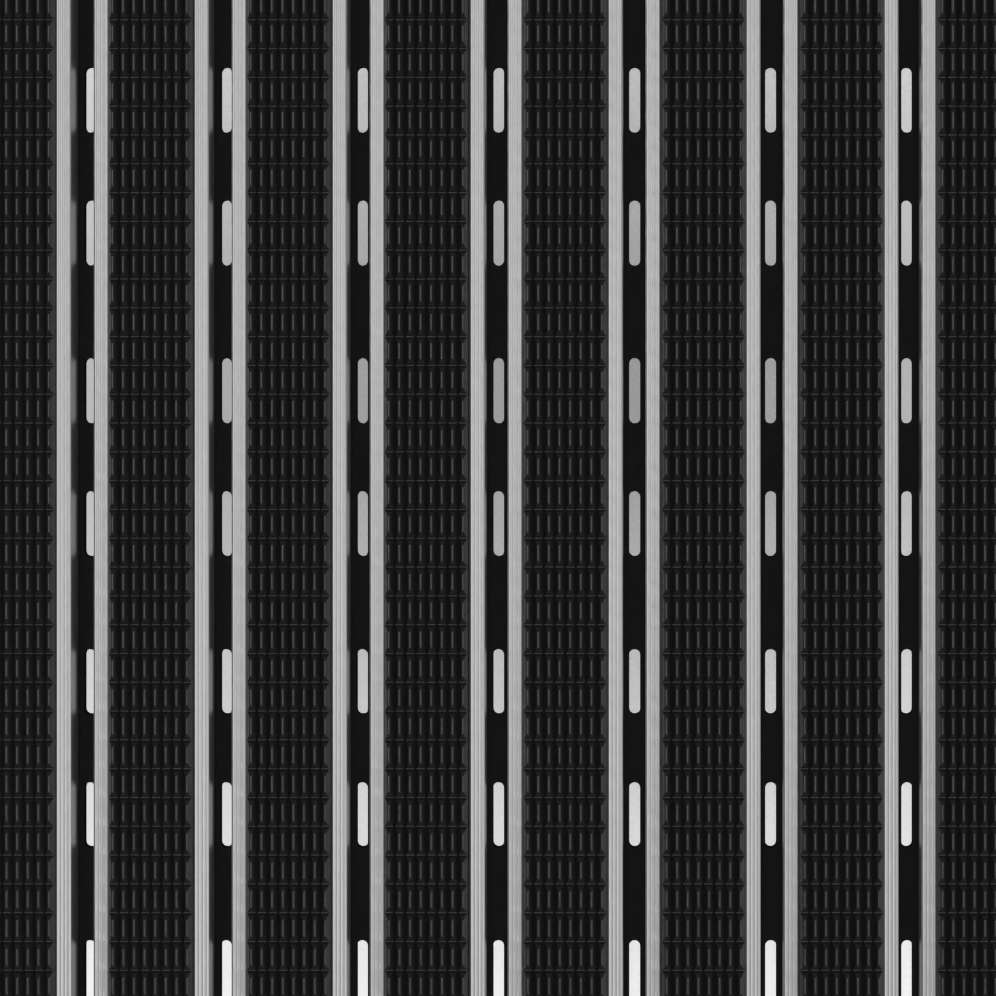

Multi Directional Scrapers (Open Construction)
].png?s=1500x&t=JPEG)

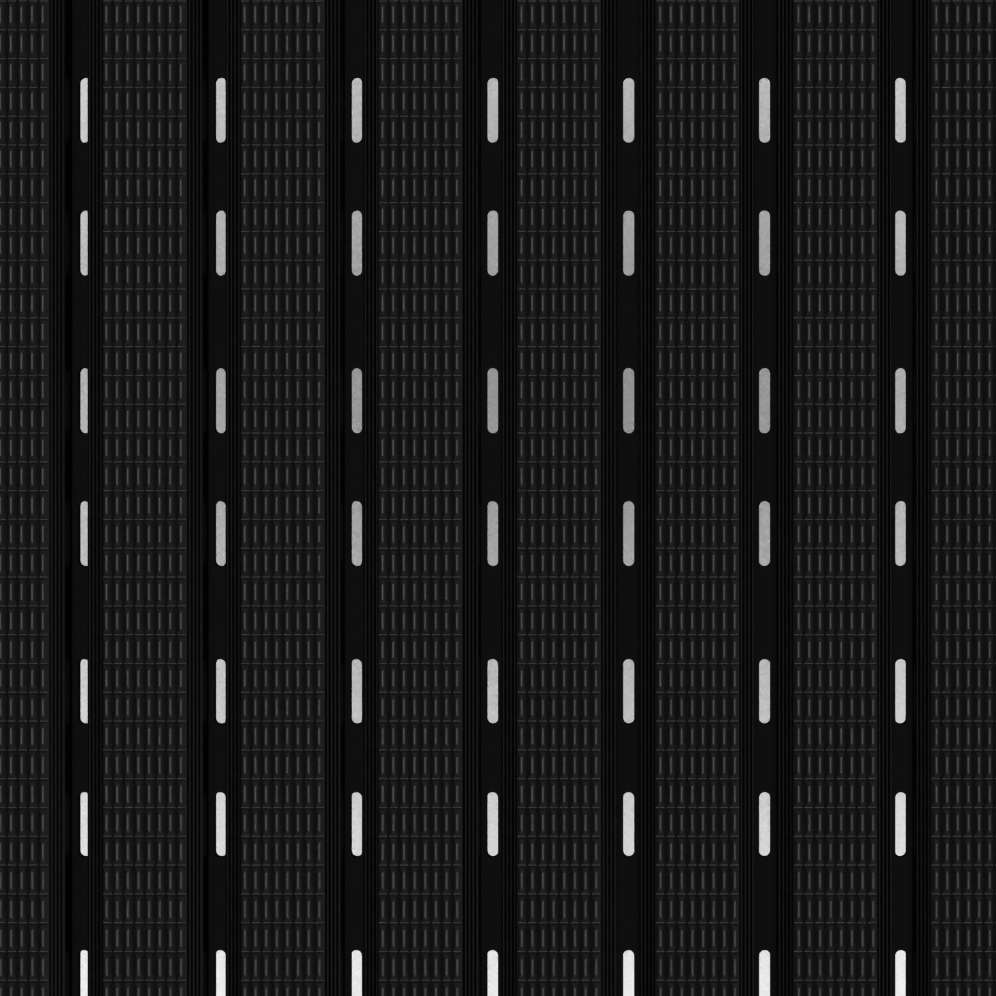

Multi Directional Scrapers with Black Anodised Rails (Open Construction)
Downloads and Resources
Datasheet
Technical Drawings
Plan.a Closed Surface Standard Profile in a Recessed Matwell
Plan.a Open Surface Standard Profile in a Recessed Matwell
