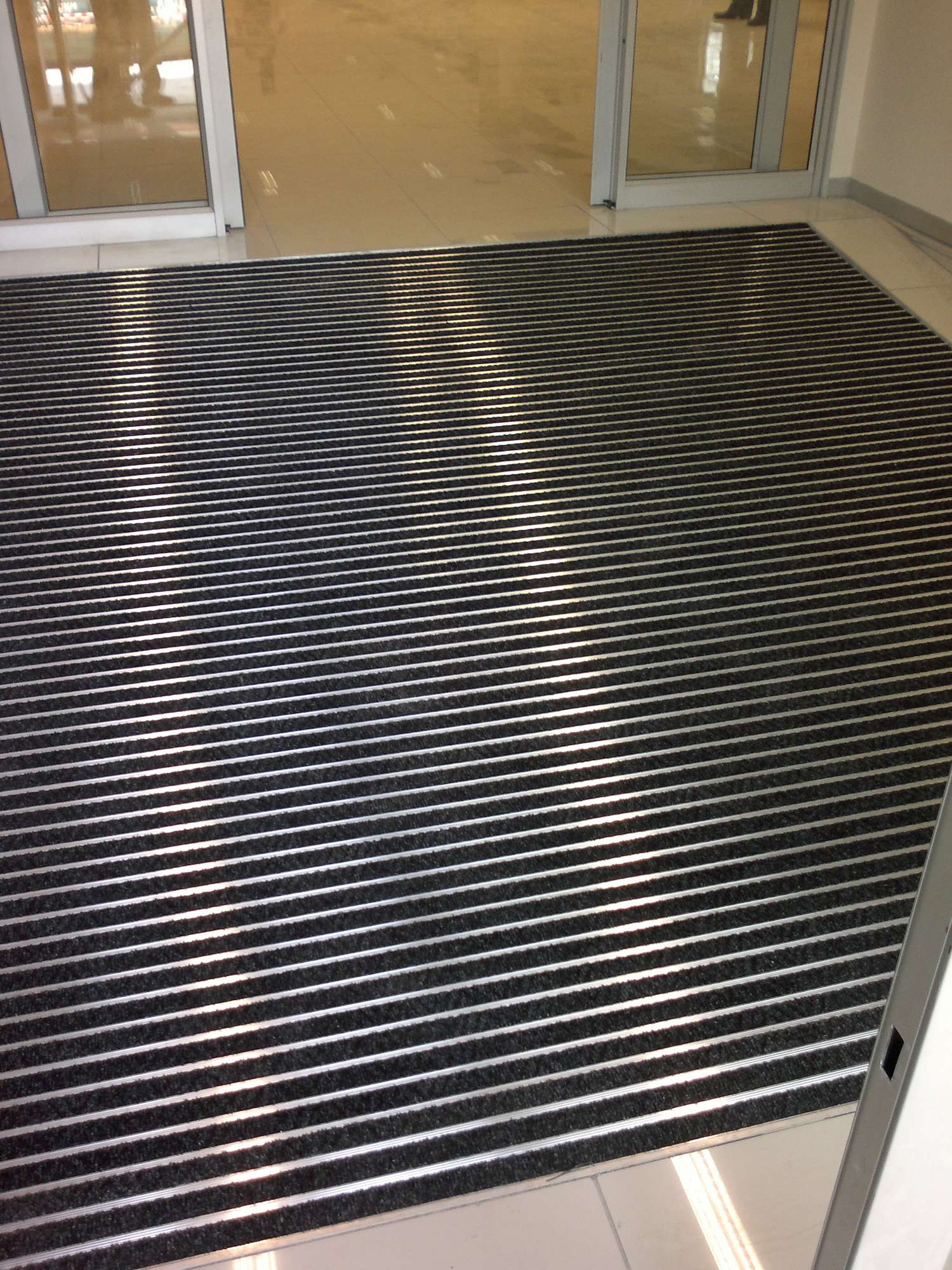

Plan.e

Robust aluminium entrance matting with low profile

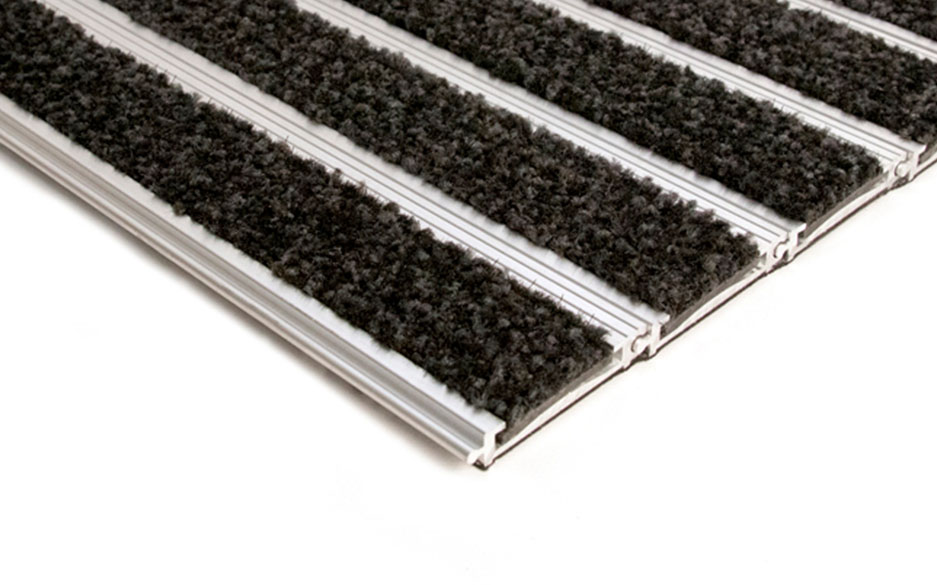

Entrance areas are a building’s weak point against the elements, with busy doorways handling a surprising volume of dirt and moisture. Plan.e is a heavy-duty aluminium plank system with wider inserts for effective moisture absorption in busy entrances. It can accommodate any of our carpet inserts such as Needlepunch or Alba ECONYL®, allowing you to specify a design that compliments most public buildings. Linking joints facilitate simple handling and fitting, as well as providing a continuous design finish. Its closed construction surface keeps dirt at the surface for locations that are cleaned regularly.

Features and Benefits

  • Durable linking joints for ease of handling/fitting.
  • Suitable for high volume footfall in commercial locations.
  • Available with most standard carpet insert options.
  • Custom-made to order.
  • Fire tested to BS EN 13501-1 and slip tested to BS 7976-2.

Technical Specification

Uniclass: Pr_35_57_11_26 Entrance mats

CAWS: N10 / 300 Entrance Matting

Material: Aluminium channels with carpet inserts

Backing: High density PE60

Surface Finish: Carpet

Product Height: 12 mm

Product Weight: 13.16 kg / m²

Durability: Heavy to very heavy traffic entrances

Environmental Resistance: Suitable for indoor environments only

UV Resistance: Yes

Typical Applications: Entrance areas

Installation Method: Installed in to recessed well

Other Product Performance Information: Uniform floor load = 14.36 KN/ m². Wheel load 159 kg per wheel

Fire Tested to: Alba inserts: BS EN 13501-1 Class Cfl – s1. Needlepunch inserts: BS EN 13501-1 Class Efl – s1.

COO (Country of Origin): UK

Notes: Slip resistance specifications are based on the correct direction of travel i.e. perpendicular to the rails and inserts.

Slip Tested to: BS 7976-2 – low slip potential

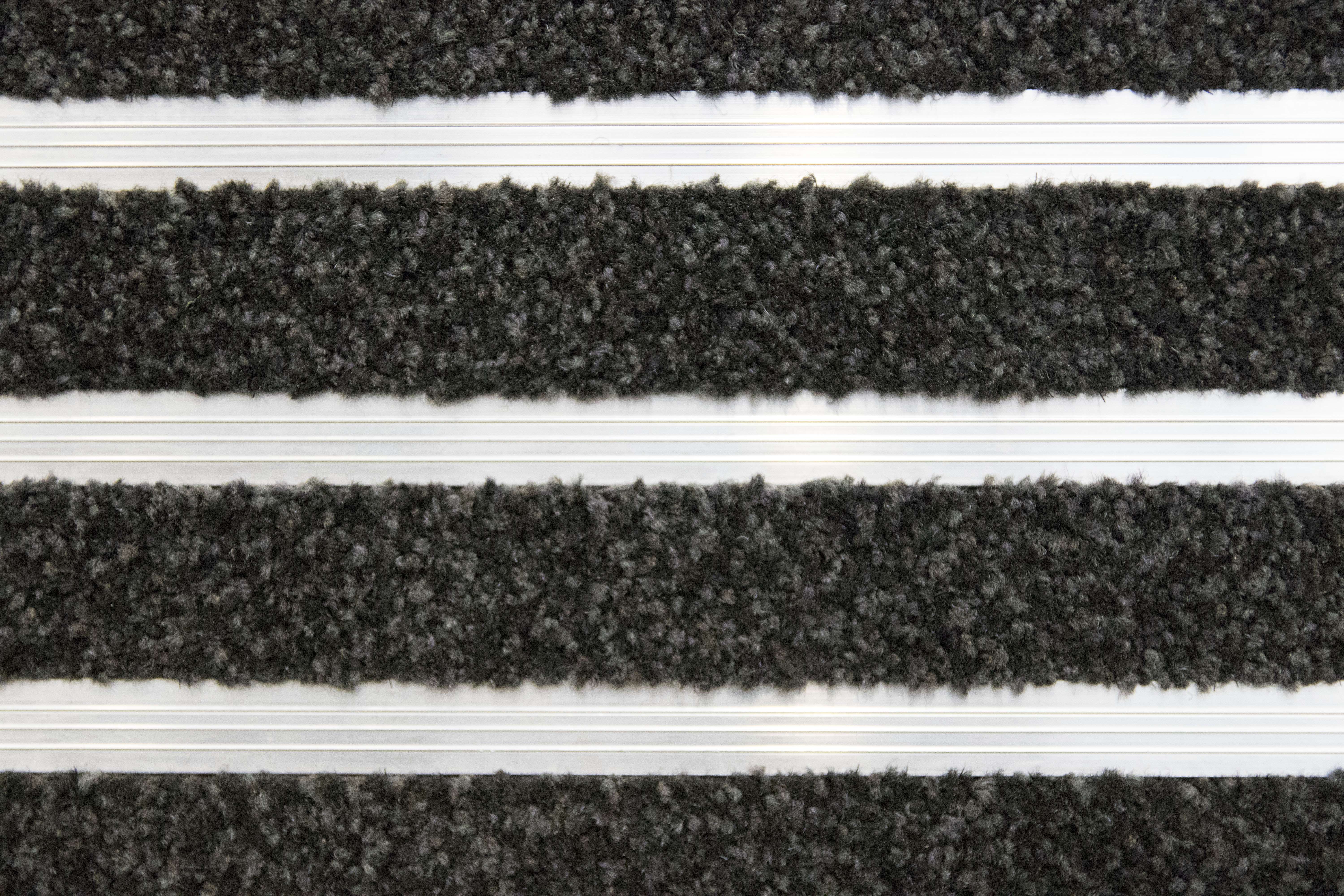

Styles and Colours

Anthracite Alba

Blue Alba

Brown Alba

Grey Alba

Charcoal Needlepunch

Grey Needlepunch

Technical Drawings

Plan.e in a Recessed Matwell

Plan.e in a Recessed Matwell
